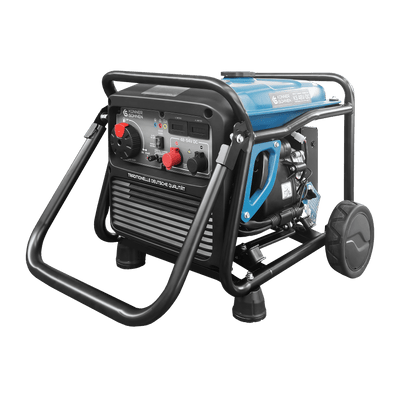

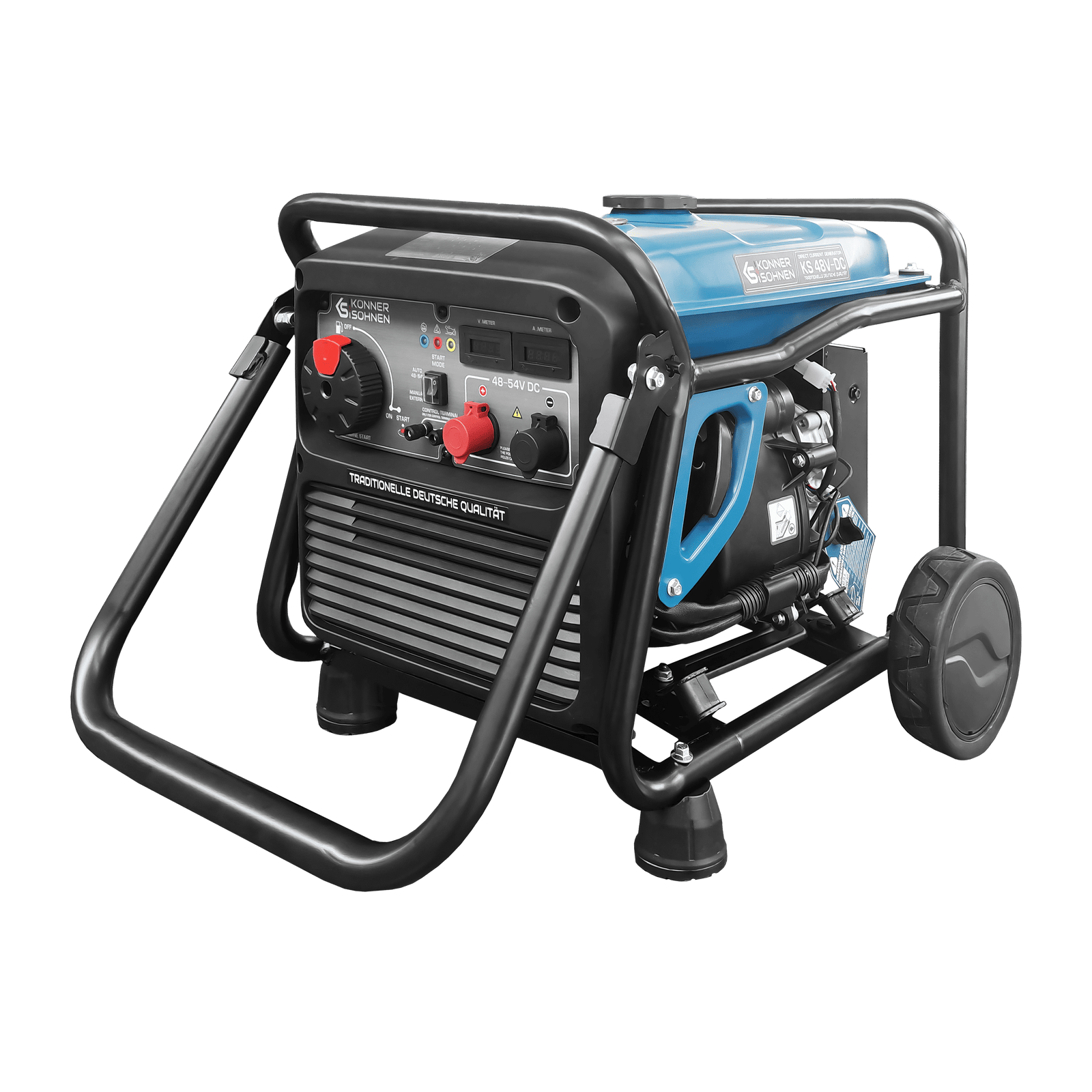

DC generátor KS 48V-DC

Name: DC generátor KS 48V-DC
Brand: Könner & Söhnen
SKU: 4260405365814
Price: 15724.0 SEK
Availability: InStock

Dostupný

15 724 kr

Specifikace

Napětí, V:	max 54.5 ± 0.5
Jmenovitý výkon, kW:	3.3
Start motoru:	Automatický a Manuální/Externí

Výhody

Backup charging device – designed for battery-based power systems with an operating voltage range including 50–55V.
Automatic operation – in AUTO mode, the generator independently monitors the battery voltage, starts when it drops below 50V, and stops when the output reaches 54.5 ± 0.5 V and the current drops below 20A.
MANUAL/EXTERNAL mode – generator starts/stops via CONTROL TERMINAL contacts, regardless of battery voltage or output current.
Indicator system – allows for quick monitoring of operating status and important parameters.
Transport kit – the generator is equipped with a foldable handle and wheels for convenient transport, significantly expanding its application possibilities.

Doručení

Doprava zdarma: obdržíte svou objednávku během 1-5 pracovních dnů.

Platba

Nabízíme širokou škálu bezpečných a pohodlných platebních metod, včetně:

Kupte sadu a ušetřete peníze

DC generátor KS 48V-DC

15 724 kr

15 kr

( Ušetříte: 15 kr )

Funkce

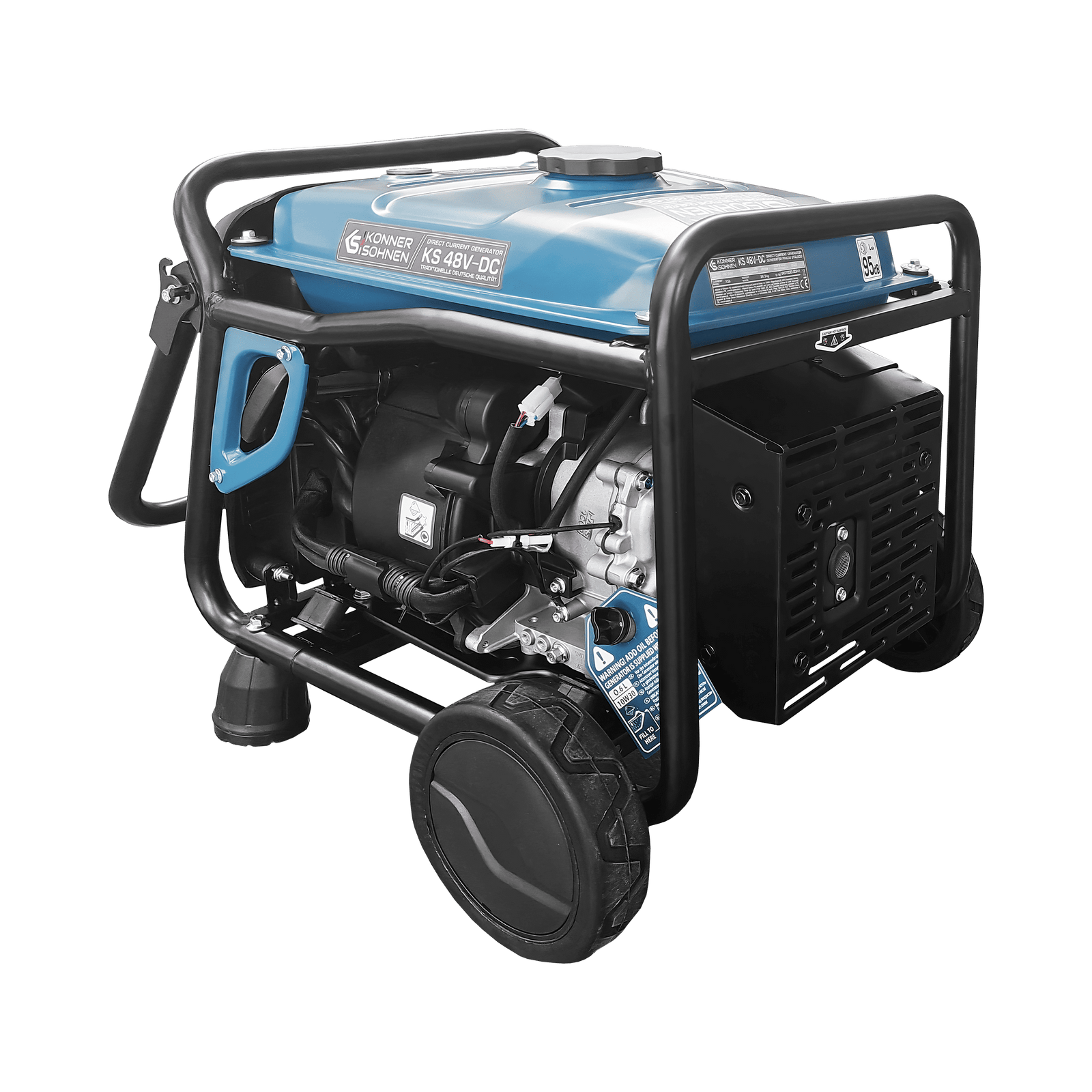

The KS 48V-DC DC generator, version 50–55V, from Könner & Söhnen is designed for charging batteries in the 50–55V range, particularly LiFePO4 with the rated voltage of 51.2V, as well as other types, provided they allow a charging voltage of up to 55V. Ideal for 48V-based energy systems such as solar, wind, and telecommunications systems. Operates in AUTO and EXTERNAL CONTROL modes and supports control via dry contacts. Equipped with short-circuit, overload, and overvoltage protection. Starts from the battery being charged. Features wheels, handle, EURO5 motor, and alternator with copper windings

01 Backup battery charger

02 AUTO and EXTERNAL CONTROL modes

03 User-friendly control panel

04 Powerful and economical engine

05 Monitoring of all important operating parameters

06 Transport kit (folding handle and wheels)

Backup battery charger

designed for power systems with battery storages with operating voltage range of 50–55 V

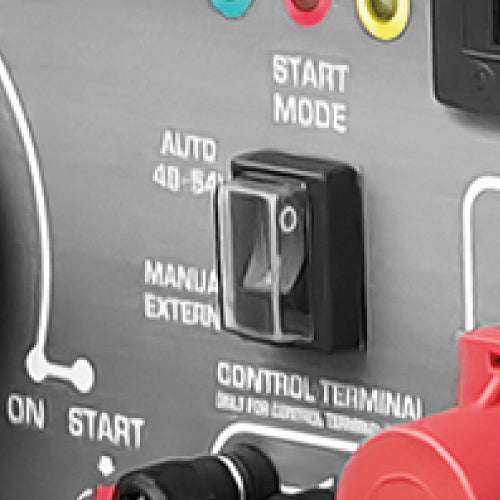

AUTO and EXTERNAL CONTROL modes

AUTO: The generator automatically monitors the battery voltage; MANUAL/EXTERNAL: The generator starts and stops via the contacts of the "CONTROL TERMINAL"

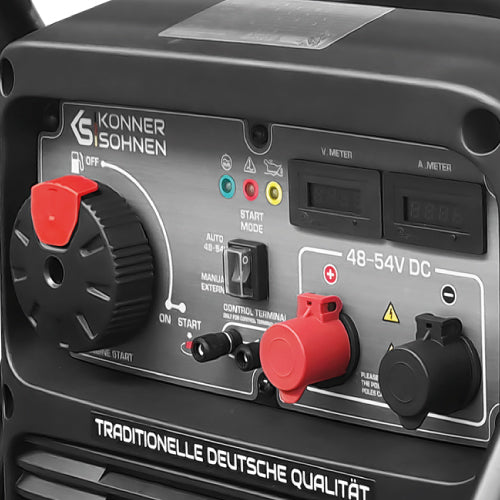

User-friendly control panel

ergonomically designed, with all necessary displays and controls for easy operation. The mode switch allows for quick adjustment to user requirements, and clearly labeled elements ensure intuitive use

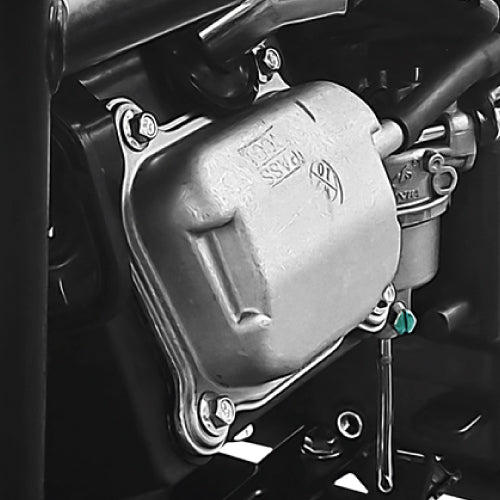

Powerful and economical engine

equipped with a modern engine that complies with the EURO 5 standard. Thanks to an optimized combustion system, it offers high performance with minimal fuel consumption. This makes the unit efficient, economical, and durable

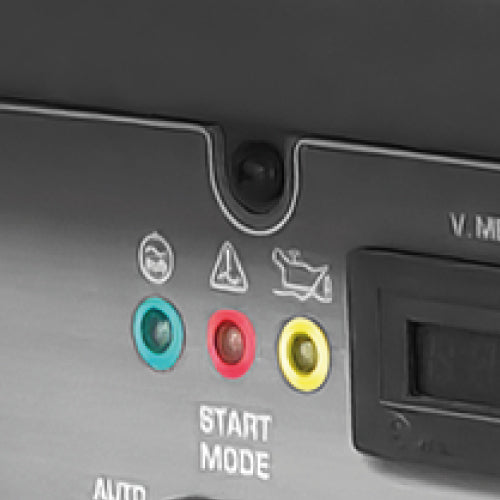

Monitoring of all important operating parameters

automatic shutdown when the oil level is low, protection against reverse polarity and short circuits, and a fuel level sensor

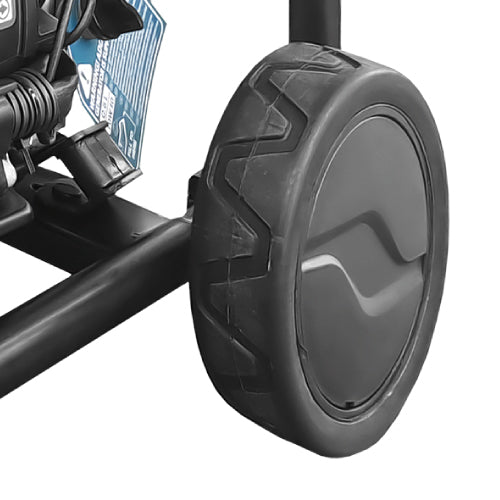

Transport kit (folding handle and wheels)

facilitates transport of the generator and thus significantly expands its application possibilities

Výhody

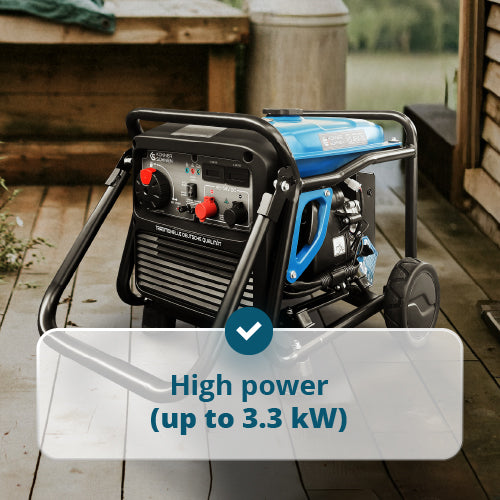

High power (up to 3.3 kW)

generates a charging current of up to 60 A at a voltage of up to 55 V

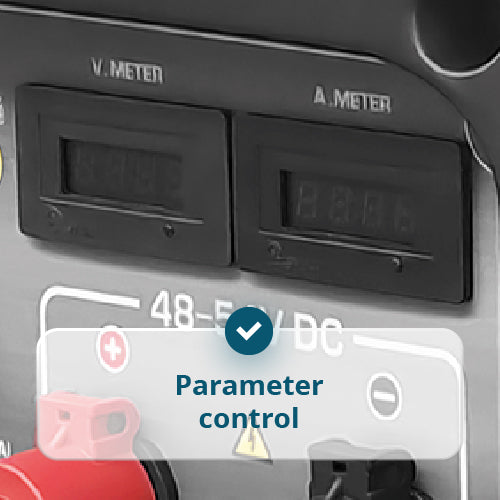

Parameter control

Thanks to the integrated measuring devices (voltmeter and ammeter), you can monitor the generator's output parameters and the voltage of the connected battery

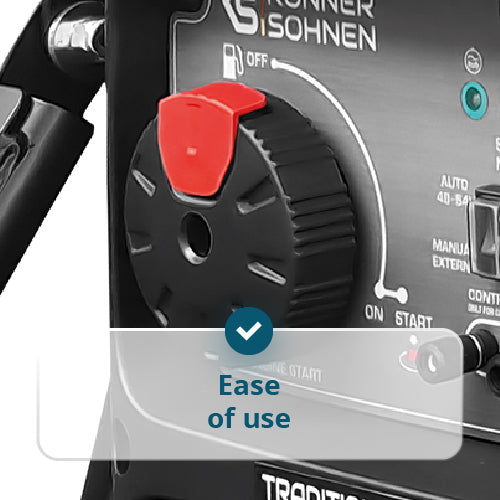

Ease of use

The ability to choose between AUTOMATIC and EXTERNAL CONTROL modes allows you to adapt the generator to different usage scenarios, ensuring autonomy in the event of a power outage

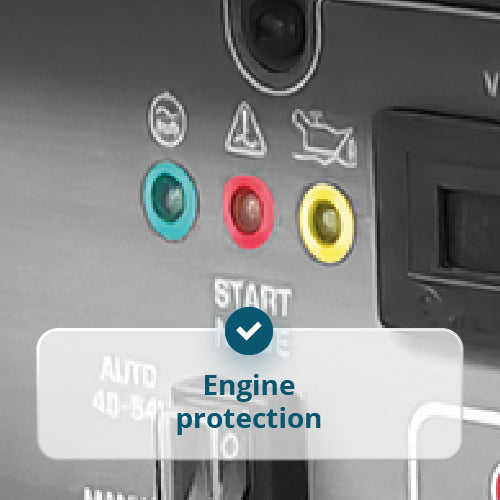

Engine protection

Thanks to the low-oil sensor, the engine stops if the oil level is too low, thus protecting it from serious damage. The generator's ammeter is equipped with an hour meter to ensure timely maintenance

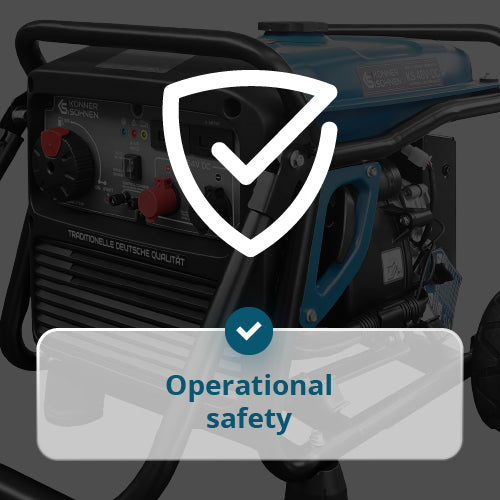

Operational safety

The generator is equipped with a control system that protects it against overloads, short circuits, and excessive battery voltage

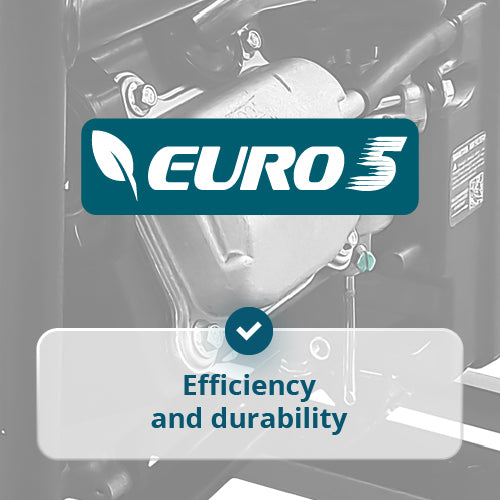

Efficiency and durability

The 4-stroke engine complies with the EURO 5 standard and ensures optimal fuel consumption, as well as the longevity of the generator and stable operation under various operating conditions

Operation indicator

indicates generator activity

Maximum power indicator

indicates that the generator output has reached a maximum current of 60 A

Low oil indicator

indicates the activation of the low oil protection system, which protects the engine from damage

Voltmeter

allows you to monitor the current voltage during operation or the battery voltage in standby mode

Amperemeter

displays the current at the generator output and has a built-in hour meter

Terminal for the positive battery cable

Terminal for the negative battery cable

Terminals for the external control device

allow you to integrate the generator into an automatic control system

Mode switch

allows you to select the desired operating mode

3-in-1 multifunction switch

combines the fuel tap, ignition switch, and start button in one unit

Specifikace

DC generátor KS 48V-DC

Napětí, V	max 54.5 ± 0.5
Jmenovitý výkon, kW	3.3
Proud (max), A	60
Objem palivové nádrže, l	12.5
Doba 50% pracovního výkonu, h***	7
Úroveň hluku Lpa (7m)/Lwa, dB	70/95
Model motoru	KS 240
Typ motoru	čtyřtaktní, benzínový, vzduchem chlazený
Výkon motoru, hp	7.5
Objem klikové skříně, l	0.6
Objem válce motoru, cm3	223
Start motoru	Automatický a Manuální/Externí
Ochranná třída	IP23M
Zahrnuje*	Generator, User manual, Open-end wrench 8×10 mm, Open-end wrench 10×13 mm, Spark plug wrench, Screwdriver, 2×Battery connection cables
Hrubé rozměry (DŠV), mm	665×435×450
Čistá hmotnost, kg	36.5
Hrubá hmotnost, kg	39.5
SKU	KS 48V-DC
Čárový kód	4260405365814

POZOR! Výrobek se prodává bez motorového oleje a benzínu. Před prvním spuštěním je nutné doplnit motorový olej pro čtyřtaktní benzínové motory. Doporučujeme olej 10W-30 nebo 10W-40. Před každým použitím vždy zkontrolujte hladinu oleje. Používejte pouze bezolovnatý benzín s oktanovým číslem 90–95, který neobsahuje více než 10 % ethanolu.
