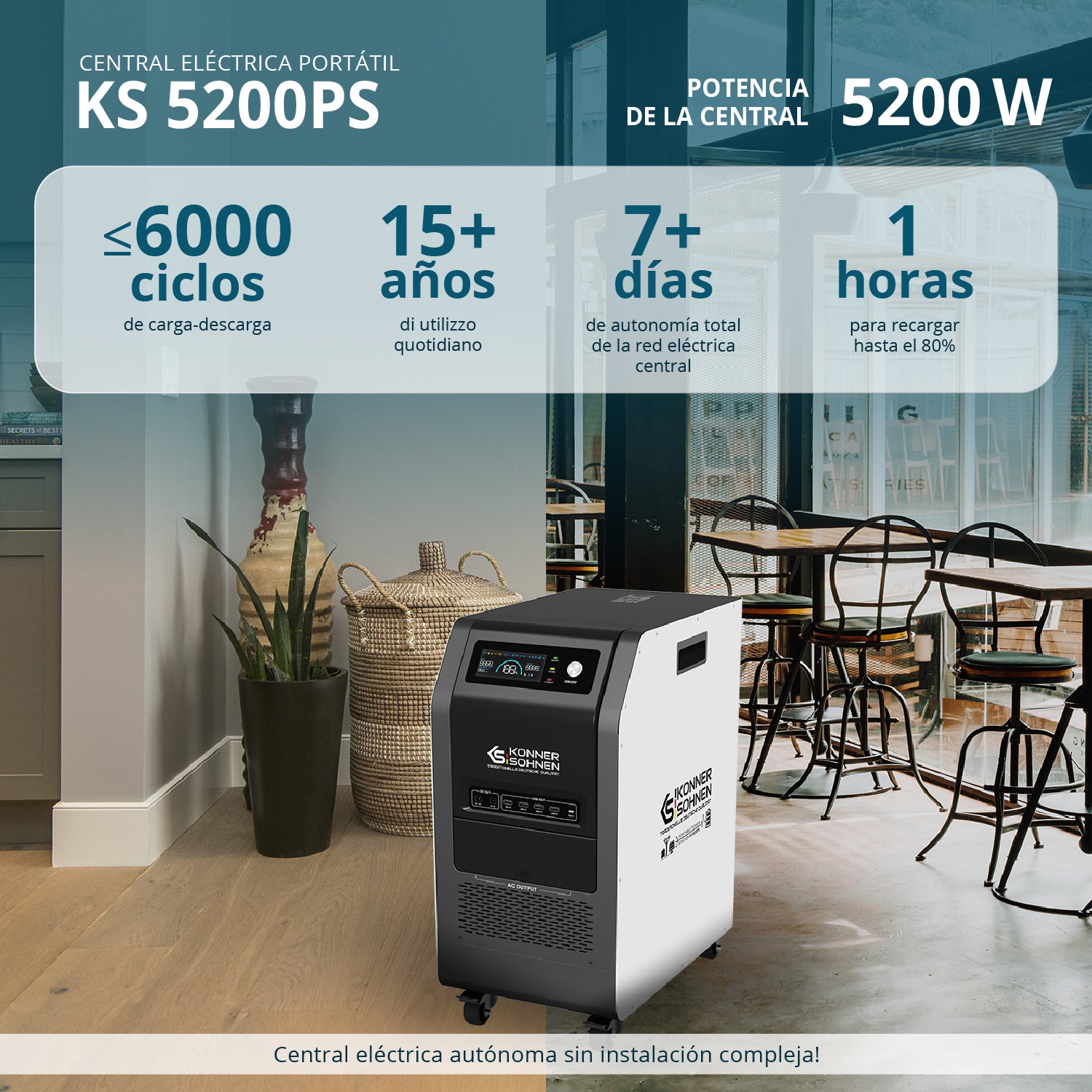

Central eléctrica portátil KS 5200PS

Name: Central eléctrica portátil KS 5200PS
Brand: Könner & Söhnen
SKU: 4260405368006
Price: 31172.0 SEK
Availability: OutOfStock

No disponible

31 172 kr

Especificación

Potencia nominal, W:	5200
Capacidad, Wh:	5120
Tipo de batería recargable integrada:	LiFePO₄ (batería de fosfato de hierro y litio)
Ciclo de vida de la batería:	≤ 6000* ciclos
Fuente De Suministro De Energía Ininterrumpida (UPS):	+

Especificación

Potencia nominal, W	5200

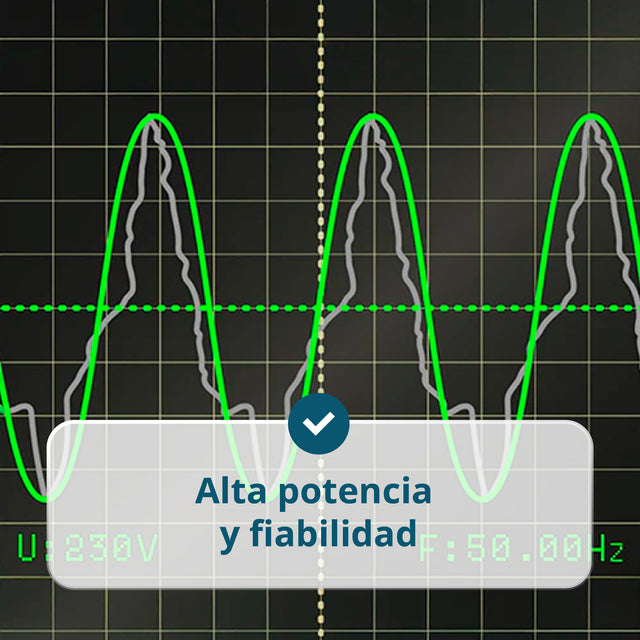

Forma de voltaje de salida	Onda Sinusoidal Pura
Capacidad de la batería	100 Ah/5120 Wh
Tipo de batería recargable integrada	LiFePO₄ (batería de fosfato de hierro y litio)
Ciclo de vida de la batería	≤ 6000* ciclos
Voltaje nominal de entrada de la batería, V	51.2
Rendimiento, eficiencia	90%
Corriente de entrada fotovoltaica máxima, A	100
Eficiencia del convertidor MPP	98% máx
Potencia máxima de carga de entrada fotovoltaica, kW	5
Voltaje máximo en vacío de los paneles solares, V	450
Rango de voltaje MPPT de los paneles solares, V	150~430
Voltaje nominal de entrada	230 ± 5%
Rango de voltaje de entrada, V	90-280
Potencia máxima de carga de entrada de CA, kW	4.4
Frecuencia, Hz	50/60
Tiempo de transmisión, ms	10 (UPS, VDE); 20 (APL)
Corriente de carga, A	25

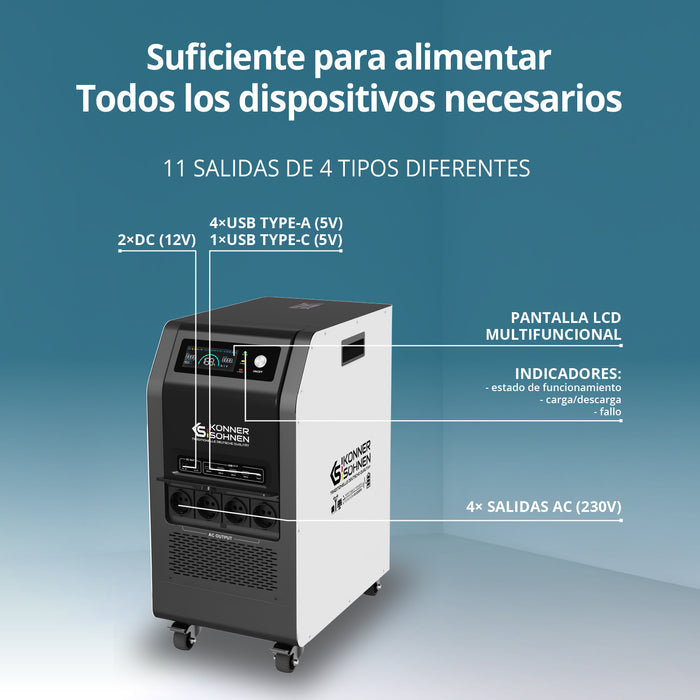

Salida de corriente alterna, CA	4 × Schuko 230 V
Salida de corriente continua, CC	2 × 12V DC5521
Salidas USB	4 × Type A (5V/2A)
Salida Type-C	1 × Type C (5V/2A)
Fuente De Suministro De Energía Ininterrumpida (UPS)	+
Salida de corriente de los puertos de CA, A	23
Temperatura de funcionamiento, °C	0 °C a 45 °C Carga, -10 °C a 60 °C Descarga
Special features	48V DC output for generator or battery, Pure sine wave inverter, LiFePO₄ 5.12 kWh, MPPT controller, UPS < 10 ms, Tandem Power support, Fast charging up to 80 % in 1 hour, Overload and overheat protection, LCD display with parameter monitoring, Wheels and handles for transport
Equipamiento	Power Station, USB cable for PC connection, GX20 plug for ATS output, 2x120A plugs for 48VDC terminal, 2×MC4 connectors for photovoltaic input, User manual

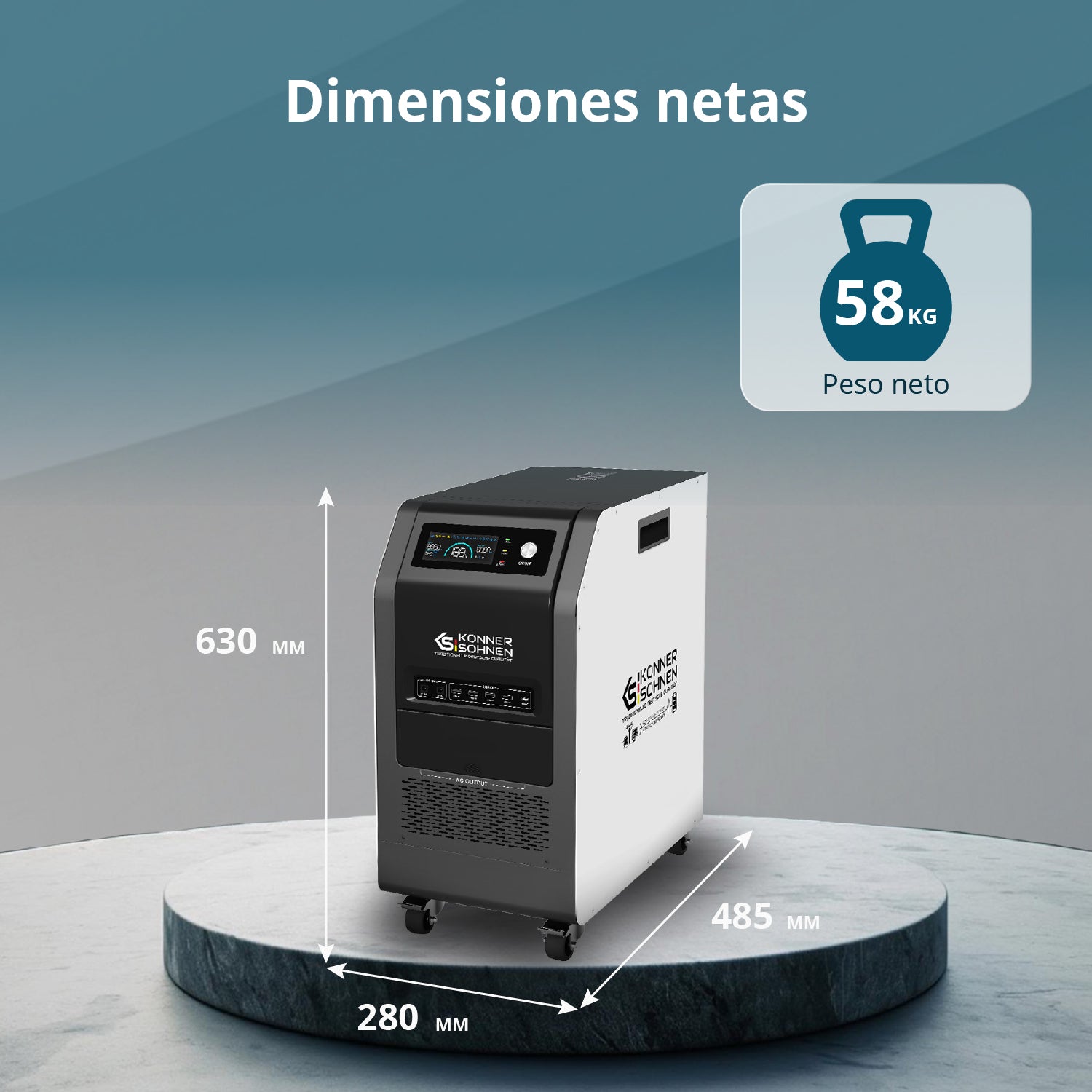

Medidas netas, mm	485×280×630
Medidas brutas, mm	599×404×682
Peso neto, kg	58
Peso bruto, kg	72.0
SKU	KS 5200PS
Código de barras	4260405368006

Beneficios

Mobility and scalability – the ability to connect a 48V-DC generator or additional batteries, or to pair two identical stations (e.g. 2 × KS 5200PS), combined with portability, creates a flexible hybrid system for various use cases – for home, business, or emergencies.

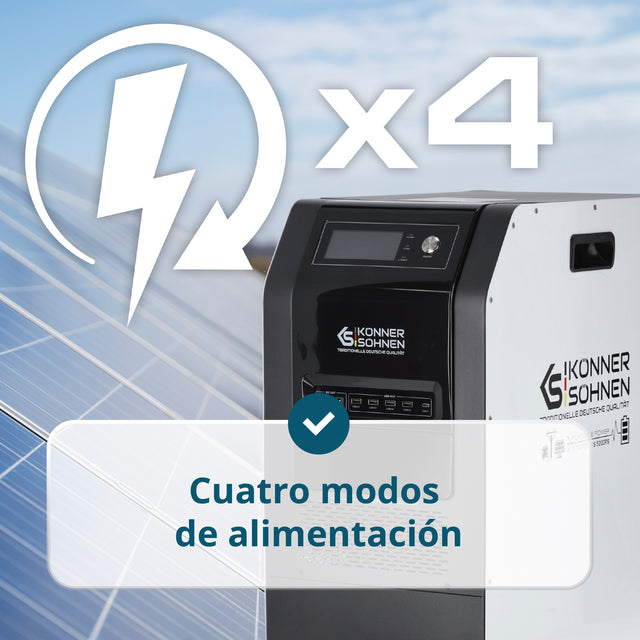

Four power supply options – mains power, efficient solar charging up to 80 % in 1 hour, DC generators, additional batteries, and instant switching between them when needed.
Durable and safe LiFePO₄ battery – lifespan up to 6000 cycles and more than 10 years of service ensure a reliable investment in energy independence.
UPS function for uninterrupted operation – automatic power switching < 10 ms protects sensitive equipment from failures, data – from loss, and business – from downtime.

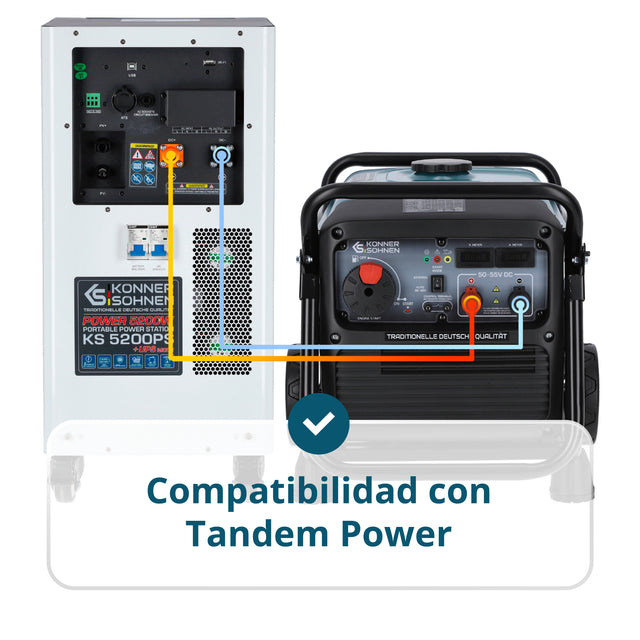

Tandem Power compatibility – intelligent control when operating together with the KS 48V-DC generator: when the battery charge drops, the generator starts automatically, runs at maximum efficiency, and turns off once the station is charged.

Entrega

Envío gratuito: reciba su pedido en solo 1-5 días hábiles.

Pago

Ofrecemos una amplia gama de métodos de pago seguros y convenientes, incluyendo:

Características

Könner & Söhnen KS 5200PS is the core of a hybrid energy hub – a multifunctional 3-in-1 power station combining a pure sine wave inverter, MPPT controller, and 5.12 kWh LiFePO₄ battery. The station can be charged from four sources – mains power, solar panels, external battery, or DC generator. Thanks to the 48V DC output, it supports integration with KS 48V-DC generators through the Tandem Power system, which automatically optimizes operation and reduces fuel consumption. Reliable and silent, this station is ready for 24/7 autonomous use at home or in business operations during power outages.

01 Full energy independence

02 Hybrid power source with DC generator

03 Operation from an external battery

04 REGULADOR DE CARGA SOLAR MPPT

05 FUENTE DE SUMINISTRO DE ENERGÍA ININTERRUMPIDA

06 Battery lifespan over 10 years

07 Efficient energy consumption management

08 PANTALLA LCD

09 CONEXIÓN A UN ORDENADOR

Full energy independence

Support for DC generators, additional batteries, and solar panels allows users to obtain free solar energy and operate autonomously for days or even weeks without grid connection in emergencies or prolonged outages.

Liquid error (snippets/custom-features line 48): invalid url input

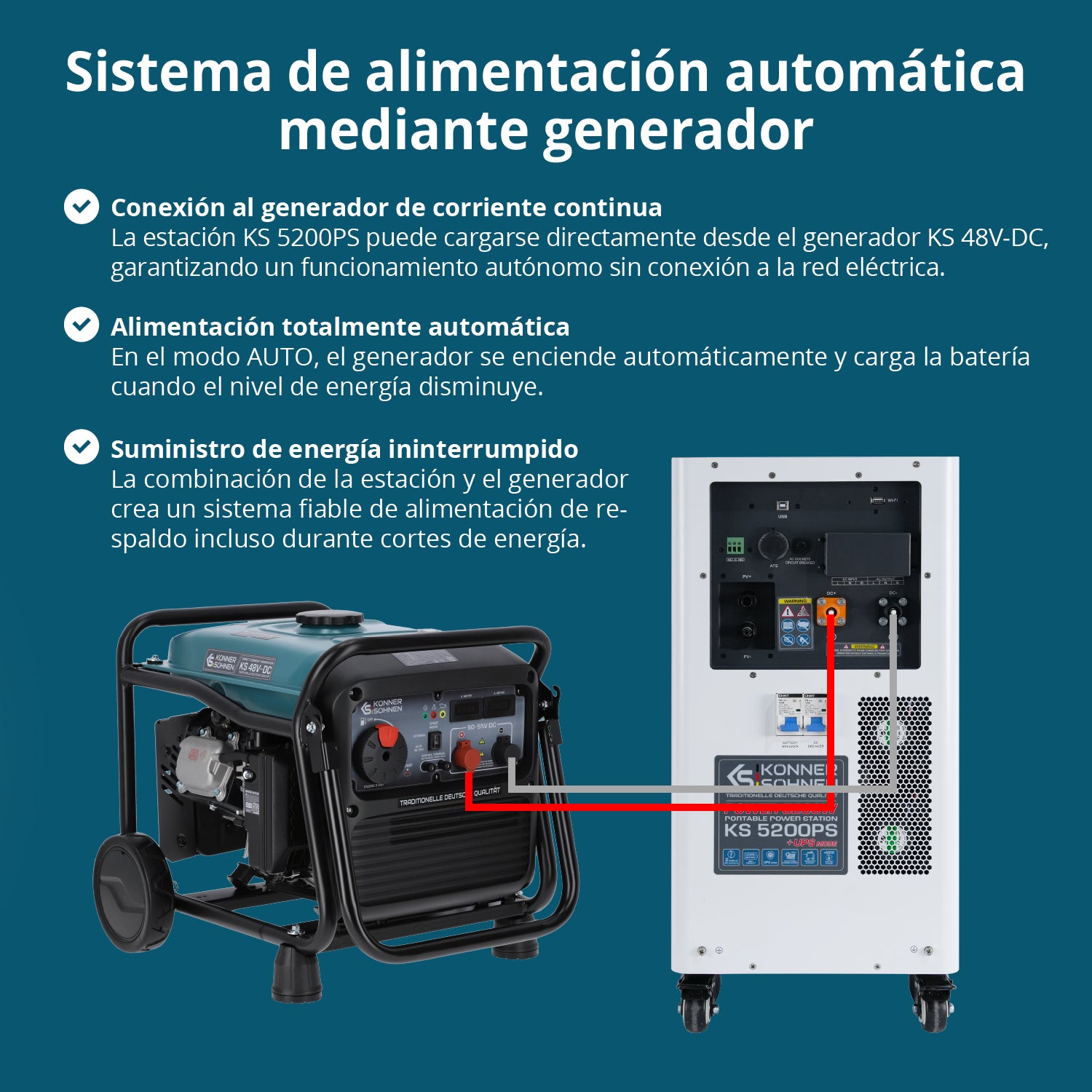

Hybrid power source with DC generator

Using a KS 48V-DC series DC generator, you can quickly set up a fully automatic power supply system. The generator monitors battery voltage, automatically starts charging when needed, and stops when the battery is sufficiently charged.

Liquid error (snippets/custom-features line 48): invalid url input

Operation from an external battery

You can connect an additional battery (LiFePO₄ only, nominal capacity 5.12 kWh) to the DC terminal of the power station, which can either support or replace the built-in battery.

Liquid error (snippets/custom-features line 48): invalid url input

REGULADOR DE CARGA SOLAR MPPT

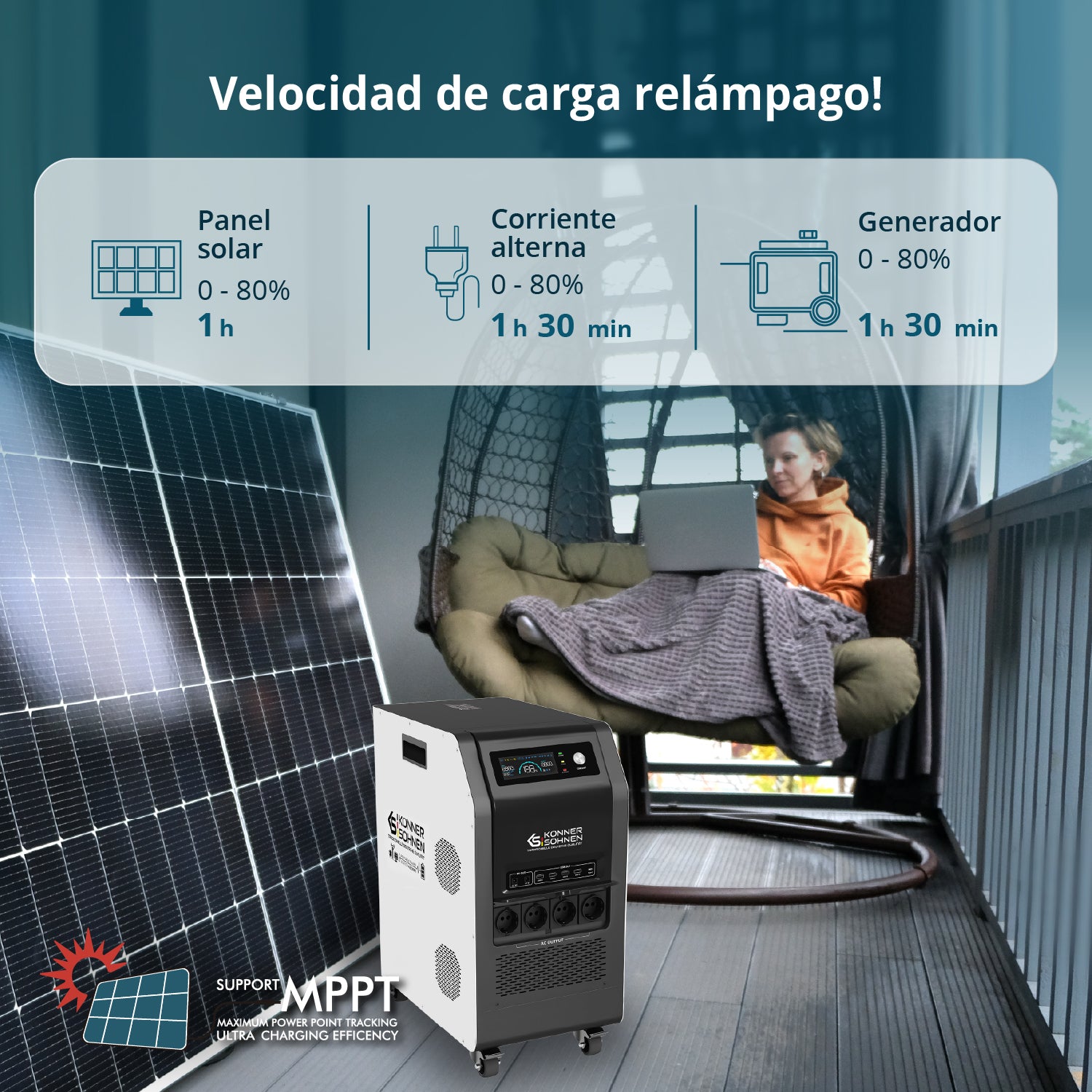

The high charging capability from solar panels is a key advantage of this station. With sufficient solar panel power, the KS 5200PS charges your battery up to 80% in just 1 hour.

FUENTE DE SUMINISTRO DE ENERGÍA ININTERRUMPIDA

The power station ensures continuous operation of connected devices during power outages or voltage fluctuations. It switches power within milliseconds, protecting against data loss, equipment damage, and downtime.

Battery lifespan over 10 years

The solar power station is equipped with a lithium iron phosphate (LiFePO₄) battery rated for up to 6000 charge/discharge cycles*, ensuring stable performance for many years.

Efficient energy consumption management

The station features an ATS connection that allows control of an external automatic transfer switch, enabling redirection of excess solar energy to additional consumers, thus maximizing efficiency.

PANTALLA LCD

The control panel features an LCD that shows key operating parameters such as battery charge level, remaining runtime at current load, charging time, input and output power, output frequency (50/60 Hz), and warning messages.

CONEXIÓN A UN ORDENADOR

The package includes a USB cable for PC connection via the USB-B port on the rear panel. Installing the software on your computer allows you to monitor key station parameters and adjust settings
