Stazione di alimentazione portatile KS 5200PS

Stazione di alimentazione portatile KS 5200PS

Name: Stazione di alimentazione portatile KS 5200PS
Brand: Könner & Söhnen
SKU: 4260405368006
Price: 31092.0 SEK
Availability: InStock

Disponibile

31 092 kr

Specifica

Potenza nominale, W:	5200
Capacità, Wh:	5120
Tipo di batteria:	LiFePO₄ (batteria al litio ferro fosfato)
Ciclo di vita:	≤ 6000* cicli
Gruppo di Continuità (UPS):	più

Specifica

Potenza nominale, W	5200

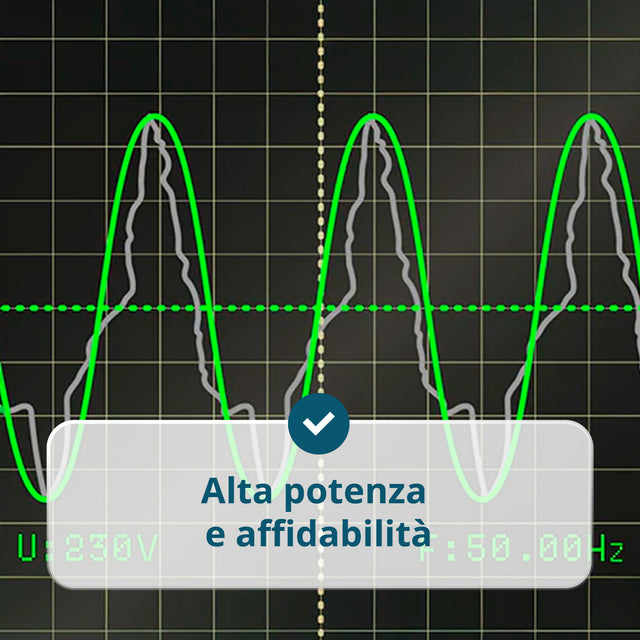

La forma dell'output	Onda Sinusoidale Pura
Capacità della batteria	100 Ah/5120 Wh
Tipo di batteria	LiFePO₄ (batteria al litio ferro fosfato)
Ciclo di vita	≤ 6000* cicli
Tensione nominale della batteria (CC), V	51.2
Efficienza	90%
Corrente di carica PV, max, A	100
Efficienza del convertitore MPP	98% max
Potenza Massima di Carica Ingresso PV, kW	5
Tensione massima a vuoto dai pannelli solari (CC), V	450
Intervallo di tensione MPPT dai pannelli solari, V	150~430
Tensione nominale di ingresso	230 ± 5%
Gamma di Tensione in Ingresso (AC), V	90-280
Potenza massima di carica ingresso AC, kW	4.4
Frequenza, Hz	50/60
Tempo di trasferimento, ms	10 (UPS, VDE); 20 (APL)
Corrente di Carica (AC), A	25
Uscita CA	4 × Schuko 230 V
uscita CC	2 × 12V DC5521
uscita USB	4 × Type A (5V/2A)
Uscita Type-C	1 × Type C (5V/2A)
Gruppo di Continuità (UPS)	più
Corrente di uscita dai porti AC, A	23
Temperatura di esercizio, °C	Carica da 0 °C a 45 °C, Scarica da -10 °C a 60 °C
Special features	48V DC output for generator or battery, Pure sine wave inverter, LiFePO₄ 5.12 kWh, MPPT controller, UPS < 10 ms, Tandem Power support, Fast charging up to 80 % in 1 hour, Overload and overheat protection, LCD display with parameter monitoring, Wheels and handles for transport
Include	Power Station, USB cable for PC connection, GX20 plug for ATS output, 2x120A plugs for 48VDC terminal, 2×MC4 connectors for photovoltaic input, User manual
Dimensioni nette (LxPxA), mm	485×280×630
Dimensioni lorde (LxPxA), mm	599×404×682
Peso netto, kg	58
Peso lordo, kg	72.0
SKU	KS 5200PS
Codice a barre	4260405368006

Benefici

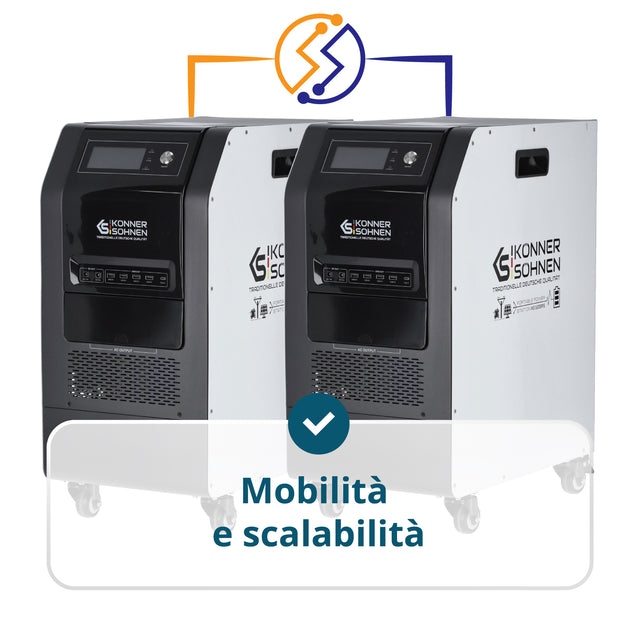

Mobility and scalability – the ability to connect a 48V-DC generator or additional batteries, or to pair two identical stations (e.g. 2 × KS 5200PS), combined with portability, creates a flexible hybrid system for various use cases – for home, business, or emergencies.

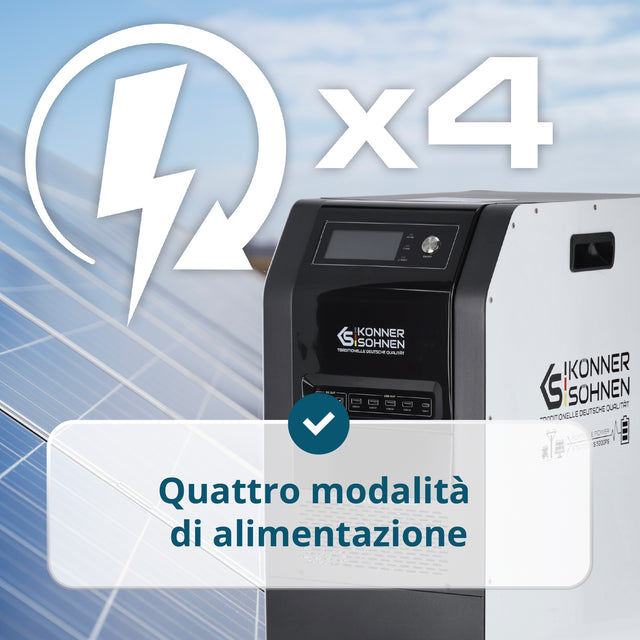

Four power supply options – mains power, efficient solar charging up to 80 % in 1 hour, DC generators, additional batteries, and instant switching between them when needed.

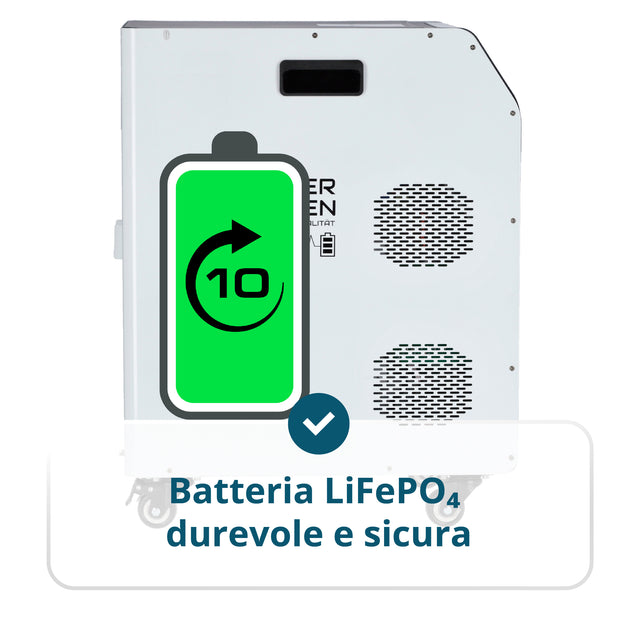

Durable and safe LiFePO₄ battery – lifespan up to 6000 cycles and more than 10 years of service ensure a reliable investment in energy independence.
UPS function for uninterrupted operation – automatic power switching < 10 ms protects sensitive equipment from failures, data – from loss, and business – from downtime.

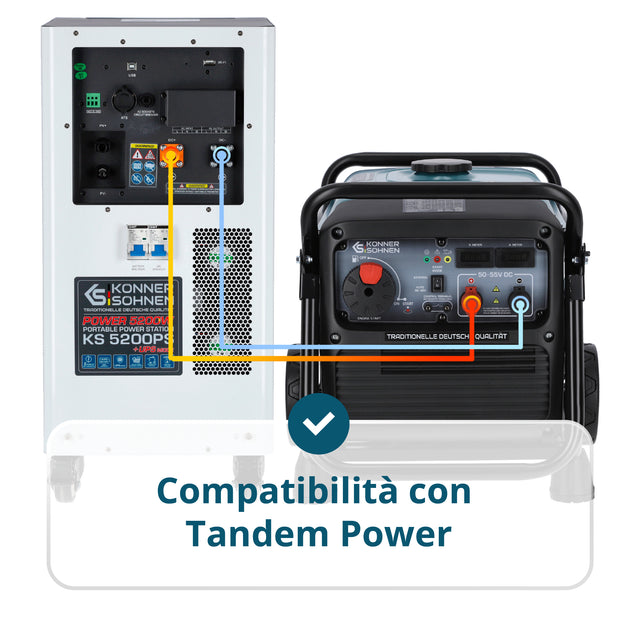

Tandem Power compatibility – intelligent control when operating together with the KS 48V-DC generator: when the battery charge drops, the generator starts automatically, runs at maximum efficiency, and turns off once the station is charged.

Consegna

Spedizione gratuita: ricevi il tuo ordine in soli 1-5 giorni lavorativi.

Pagamento

Offriamo una vasta gamma di metodi di pagamento sicuri e convenienti, tra cui:

Caratteristiche

Könner & Söhnen KS 5200PS is the core of a hybrid energy hub – a multifunctional 3-in-1 power station combining a pure sine wave inverter, MPPT controller, and 5.12 kWh LiFePO₄ battery. The station can be charged from four sources – mains power, solar panels, external battery, or DC generator. Thanks to the 48V DC output, it supports integration with KS 48V-DC generators through the Tandem Power system, which automatically optimizes operation and reduces fuel consumption. Reliable and silent, this station is ready for 24/7 autonomous use at home or in business operations during power outages.

01 Full energy independence

02 Hybrid power source with DC generator

03 Operation from an external battery

04 CONTROLLER DI CARICA SOLARE MPPT

05 ALIMENTAZIONE ELETTRICA ININTERROTTIBILE (UPS)

06 Battery lifespan over 10 years

07 Efficient energy consumption management

08 DISPLAY LCD

09 CONNESSIONE PC

Full energy independence

Support for DC generators, additional batteries, and solar panels allows users to obtain free solar energy and operate autonomously for days or even weeks without grid connection in emergencies or prolonged outages.

Liquid error (snippets/custom-features line 48): invalid url input

Hybrid power source with DC generator

Using a KS 48V-DC series DC generator, you can quickly set up a fully automatic power supply system. The generator monitors battery voltage, automatically starts charging when needed, and stops when the battery is sufficiently charged.

Liquid error (snippets/custom-features line 48): invalid url input

Operation from an external battery

You can connect an additional battery (LiFePO₄ only, nominal capacity 5.12 kWh) to the DC terminal of the power station, which can either support or replace the built-in battery.

Liquid error (snippets/custom-features line 48): invalid url input

CONTROLLER DI CARICA SOLARE MPPT

The high charging capability from solar panels is a key advantage of this station. With sufficient solar panel power, the KS 5200PS charges your battery up to 80% in just 1 hour.

ALIMENTAZIONE ELETTRICA ININTERROTTIBILE (UPS)

The power station ensures continuous operation of connected devices during power outages or voltage fluctuations. It switches power within milliseconds, protecting against data loss, equipment damage, and downtime.

Battery lifespan over 10 years

The solar power station is equipped with a lithium iron phosphate (LiFePO₄) battery rated for up to 6000 charge/discharge cycles*, ensuring stable performance for many years.

Efficient energy consumption management

The station features an ATS connection that allows control of an external automatic transfer switch, enabling redirection of excess solar energy to additional consumers, thus maximizing efficiency.

DISPLAY LCD

The control panel features an LCD that shows key operating parameters such as battery charge level, remaining runtime at current load, charging time, input and output power, output frequency (50/60 Hz), and warning messages.

CONNESSIONE PC

The package includes a USB cable for PC connection via the USB-B port on the rear panel. Installing the software on your computer allows you to monitor key station parameters and adjust settings

Specifica

Stazione di alimentazione portatile KS 5200PS

Potenza nominale, W	5200
La forma dell'output	Onda Sinusoidale Pura
Capacità della batteria	100 Ah/5120 Wh
Tipo di batteria	LiFePO₄ (batteria al litio ferro fosfato)
Ciclo di vita	≤ 6000* cicli
Tensione nominale della batteria (CC), V	51.2
Efficienza	90%
Corrente di carica PV, max, A	100
Efficienza del convertitore MPP	98% max
Potenza Massima di Carica Ingresso PV, kW	5
Tensione massima a vuoto dai pannelli solari (CC), V	450
Intervallo di tensione MPPT dai pannelli solari, V	150~430
Tensione nominale di ingresso	230 ± 5%
Gamma di Tensione in Ingresso (AC), V	90-280
Potenza massima di carica ingresso AC, kW	4.4
Frequenza, Hz	50/60
Tempo di trasferimento, ms	10 (UPS, VDE); 20 (APL)
Corrente di Carica (AC), A	25
Uscita CA	4 × Schuko 230 V
uscita CC	2 × 12V DC5521
uscita USB	4 × Type A (5V/2A)
Uscita Type-C	1 × Type C (5V/2A)
Gruppo di Continuità (UPS)	più
Corrente di uscita dai porti AC, A	23
Temperatura di esercizio, °C	Carica da 0 °C a 45 °C, Scarica da -10 °C a 60 °C
Special features	48V DC output for generator or battery, Pure sine wave inverter, LiFePO₄ 5.12 kWh, MPPT controller, UPS < 10 ms, Tandem Power support, Fast charging up to 80 % in 1 hour, Overload and overheat protection, LCD display with parameter monitoring, Wheels and handles for transport
Include	Power Station, USB cable for PC connection, GX20 plug for ATS output, 2x120A plugs for 48VDC terminal, 2×MC4 connectors for photovoltaic input, User manual
Dimensioni nette (LxPxA), mm	485×280×630
Dimensioni lorde (LxPxA), mm	599×404×682
Peso netto, kg	58
Peso lordo, kg	72.0
SKU	KS 5200PS
Codice a barre	4260405368006
