Estação de energia portátil KS 3000PS thumbnail

Mais 16

Coming soon

≤ 6000 ciclos de carregamento

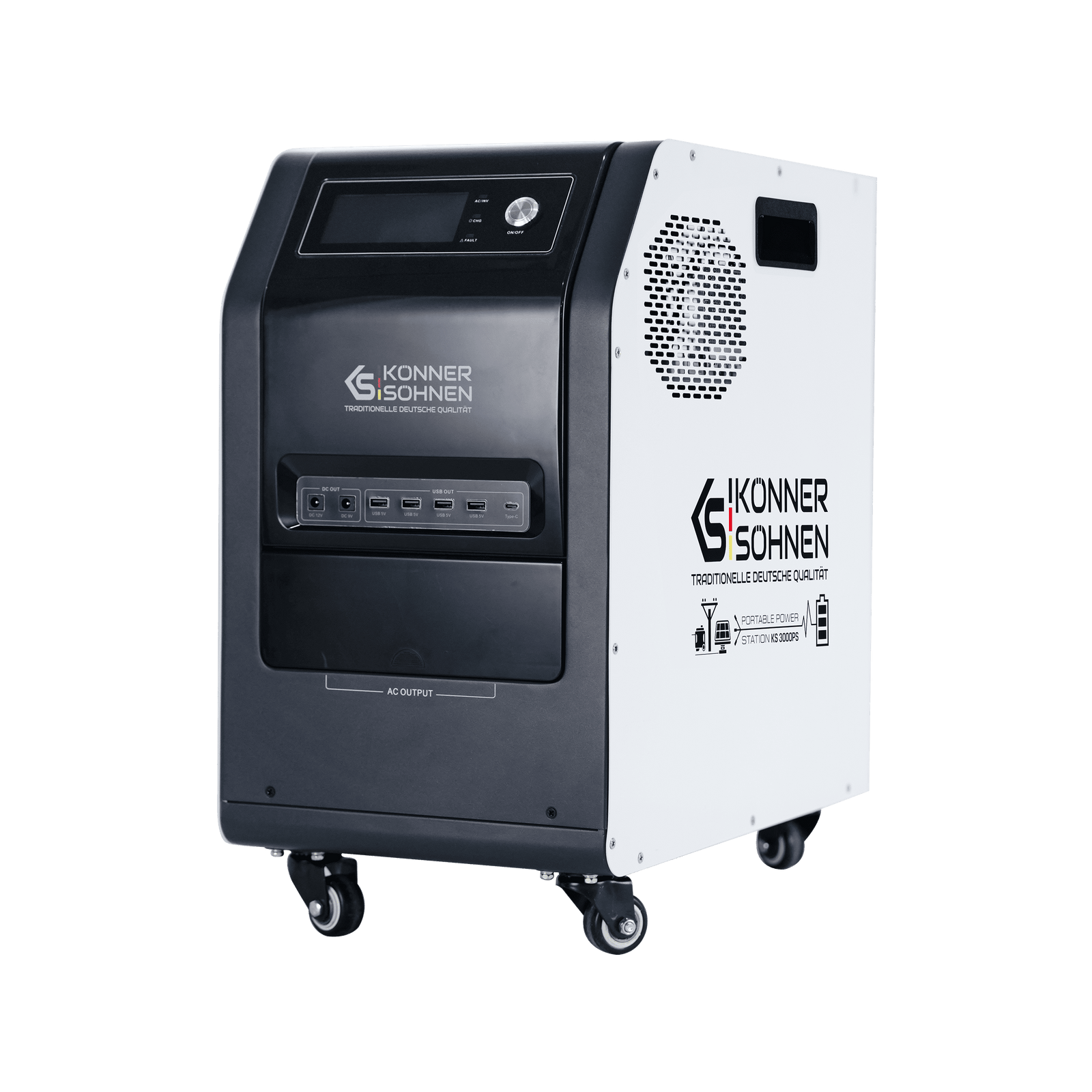

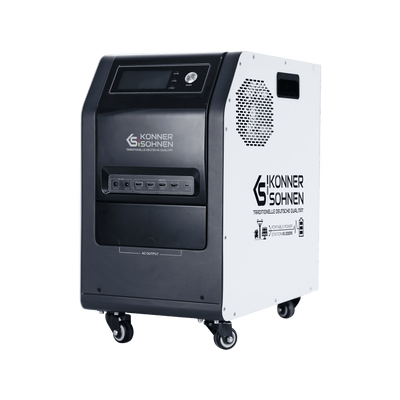

Estação de energia portátil KS 3000PS

Name: Estação de energia portátil KS 3000PS
Brand: Könner & Söhnen
SKU: 4260405366880
Price: 22059.0 SEK
Availability: OutOfStock

Indisponível

22 059 kr

Especificação

Potência nominal, W:	3000
Capacidade, Wh:	3200
Tipo de bateria:	LiFePO₄ (bateria de fosfato de ferro-lítio)
Ciclo de vida:	≤ 6000* ciclos
Fonte de Alimentação Ininterrupta (UPS):	mais

Especificação

Potência nominal, W	3000
AC output waveform	Onda Senoidal Pura
Inverter output voltage	230 V ± 5 %
Frequência, Hz	50 (± 0.2)
Tensão nominal da bateria (CC), V	25.6
Eficiência de conversão	90%
Capacidade da bateria	125 Ah/3200 Wh
Tipo de bateria	LiFePO₄ (bateria de fosfato de ferro-lítio)
Ciclo de vida	≤ 6000* ciclos
Fonte de Alimentação Ininterrupta (UPS)	mais
Maximum discharge current, A	125
Corrente de carregamento PV, máx., A	60
Corrente de Saída das Portas AC, A	120
Maximum MPPT conversion efficiency	up to 98%
Tensão máxima em vazio dos painéis solares (CC), V	160
Faixa de tensão MPPT dos painéis solares, V	30~128
Nominal AC input voltage, V	230
Gama de Tensão de Entrada (AC), V	90-280
Corrente de Carga (AC), A	16
Tempo de Transferência, ms	10 (UPS); 20 (VDE4105, Home, GEN)
Saída AC	4 × Schuko 230 V + rear terminal
Saída DC	2 × 12V DC5521
Saída USB	4 × Type A (5V/2A)
Saída Type-C	1 × Type C (5V/2A)
Temperatura de operação, °C	0 °C a 45 °C Carregamento, -10 °C a 60 °C Descarga
Special features	24V DC output for generator or battery, Pure sine wave inverter, LiFePO₄ 3.2 kWh, MPPT controller, UPS < 10 ms, Tandem Power support, Fast charging up to 80 % in 1 hour, Overload and overheat protection, LCD monitor display, Wheels and handles for mobility
Inclui	Power Station, 230 V Power Cable, USB Cable for PC Connection, 2×Quick Plug Connectors, 2×MC4 Connectors, User Manual
Dimensões líquidas (CxLxA), mm	445×280×510
Dimensões brutas (CxLxA), mm	555×380×565
Peso líquido, kg	37
Peso bruto, kg	43.0
SKU	KS 3000PS
Código de barras	4260405366880

Benefícios

Mobility and scalability – the ability to connect a 24V-DC generator, additional batteries, or combine two identical stations (e.g., 2 × KS 3000PS), along with a portable design, creates a flexible hybrid system for different scenarios — from home to business.
Four power supply methods – power from the grid, efficient solar charging up to 80 % in 1 hour, DC generators or additional batteries, and instant switching between them when necessary.
Durable and safe LiFePO₄ battery – lifespan up to 6000 cycles and over 10 years of service ensures a reliable investment in energy independence.
UPS function for uninterrupted operation – automatic power switching in <10 ms protects sensitive equipment from failures, data from loss, and business from downtime.
Tandem Power compatibility – smart control when working with the KS 24V-DC generator: when battery level drops, the generator starts automatically, runs with maximum efficiency, and shuts down as soon as the station is charged to 80%.

Entrega

Envio gratuito: receba a sua encomenda em apenas 1-5 dias úteis.

Pagamento

Oferecemos uma ampla gama de métodos de pagamento seguros e convenientes, incluindo:

Funcionalidades

Könner & Söhnen KS 3000PS is the core of a hybrid energy hub — a multifunctional 3-in-1 power station that combines a pure sine wave inverter, MPPT controller, and 3.2 kWh LiFePO₄ battery. The station allows charging from four sources — grid, solar panels, external battery, or DC generator. Thanks to the 24V DC output, it supports integration with KS 24V-DC generators via the Tandem Power system, which automatically optimizes performance and reduces fuel consumption. Reliable and silent — this station is ready for 24/7 autonomous operation at home, in business, or during power outages.

01 Full energy independence

02 Hybrid DC generator power source

03 External battery operation

04 MPPT solar charge controller

05 FONTE DE ALIMENTAÇÃO ININTERRUPTA (UPS)

06 Battery lifespan over 10 years

07 Efficient energy management

08 ECRÃ LCD

09 CONEXÃO DE PC

Full energy independence

Support for DC generators, additional batteries, and solar panels allows users to obtain free solar energy and operate autonomously for days or even weeks without grid connection in emergencies or prolonged outages.

Liquid error (snippets/custom-features line 48): invalid url input

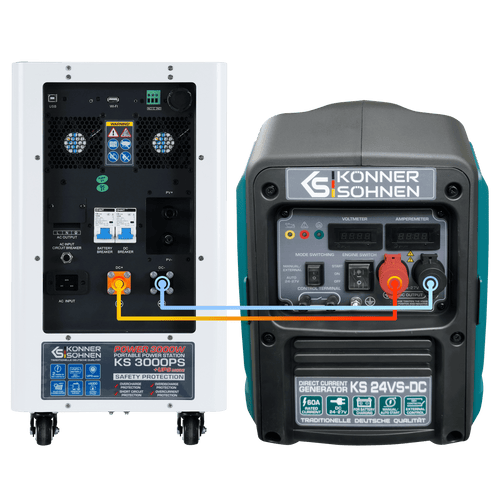

Hybrid DC generator power source

With a KS 24V-DC generator, you can quickly set up a fully automatic power supply. The generator monitors battery voltage, starts charging automatically when needed, and stops when the battery is sufficiently charged.

Liquid error (snippets/custom-features line 48): invalid url input

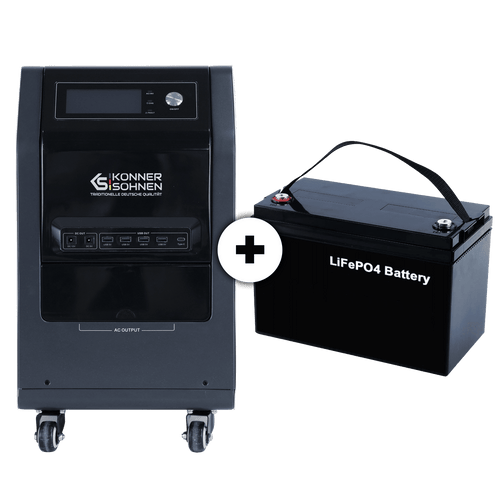

External battery operation

You can connect an additional battery (LiFePO₄ only, nominal capacity 3.2 kWh) to the DC terminal of the power station, which can either support or replace the built-in battery.

Liquid error (snippets/custom-features line 48): invalid url input

MPPT solar charge controller

The high solar charging capacity is a key advantage of this power station. With sufficient solar panel power, the KS 3000PS charges the battery up to 80 % in just 1 hour.

FONTE DE ALIMENTAÇÃO ININTERRUPTA (UPS)

The power station ensures continuous operation of connected devices during power outages or voltage fluctuations. It switches power within milliseconds, protecting against data loss, equipment damage, and downtime.

Battery lifespan over 10 years

The solar power station is equipped with a lithium iron phosphate (LiFePO₄) battery rated for up to 6000 charge/discharge cycles*, ensuring stable performance for many years.

Efficient energy management

The station includes ATS connectivity, allowing control of an external automatic transfer switch that can redirect excess solar energy to other consumers, maximizing energy efficiency.

ECRÃ LCD

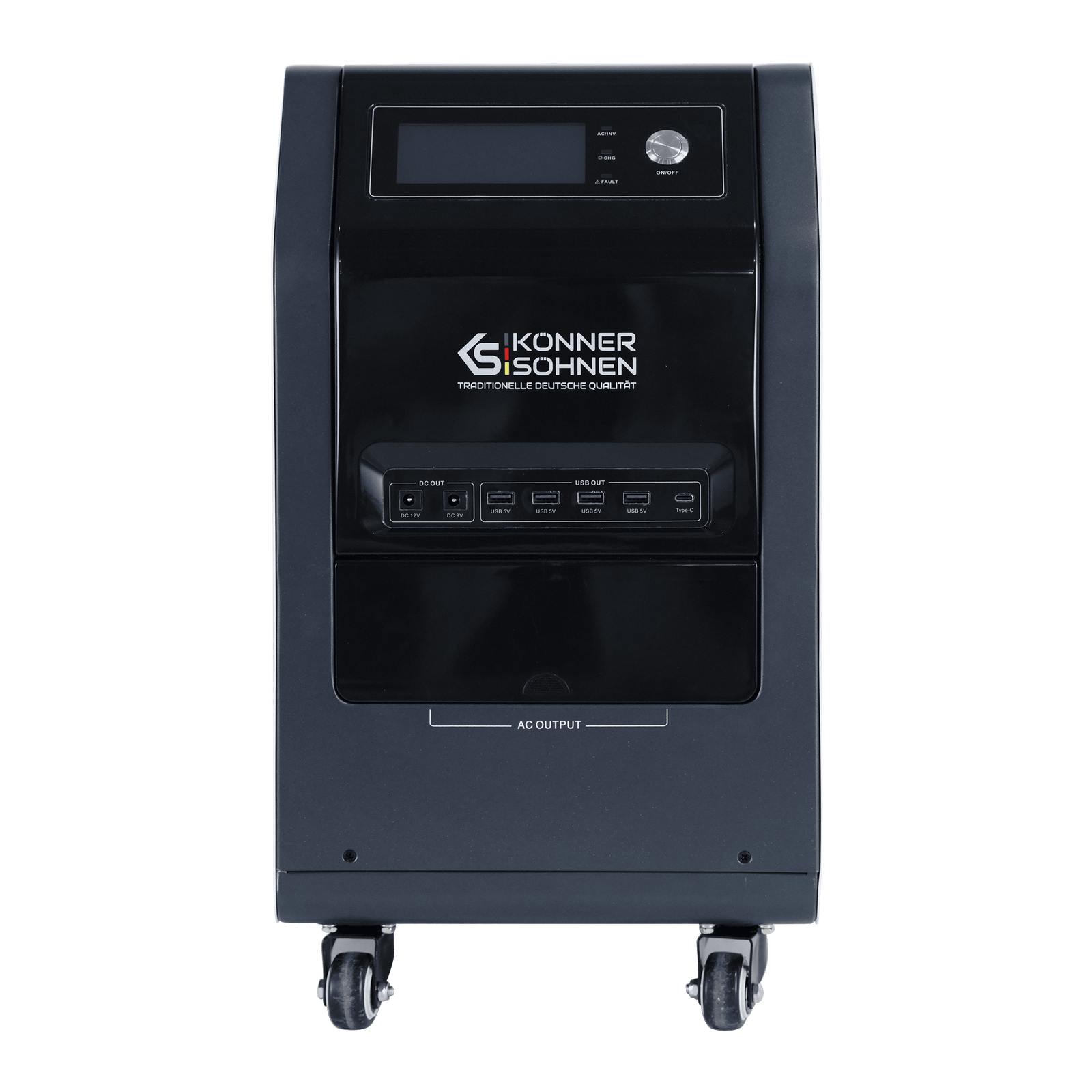

The control panel features an LCD that shows key operating parameters such as battery charge level, remaining runtime at current load, charging time, input and output power, output frequency (50/60 Hz), and warning messages.

CONEXÃO DE PC

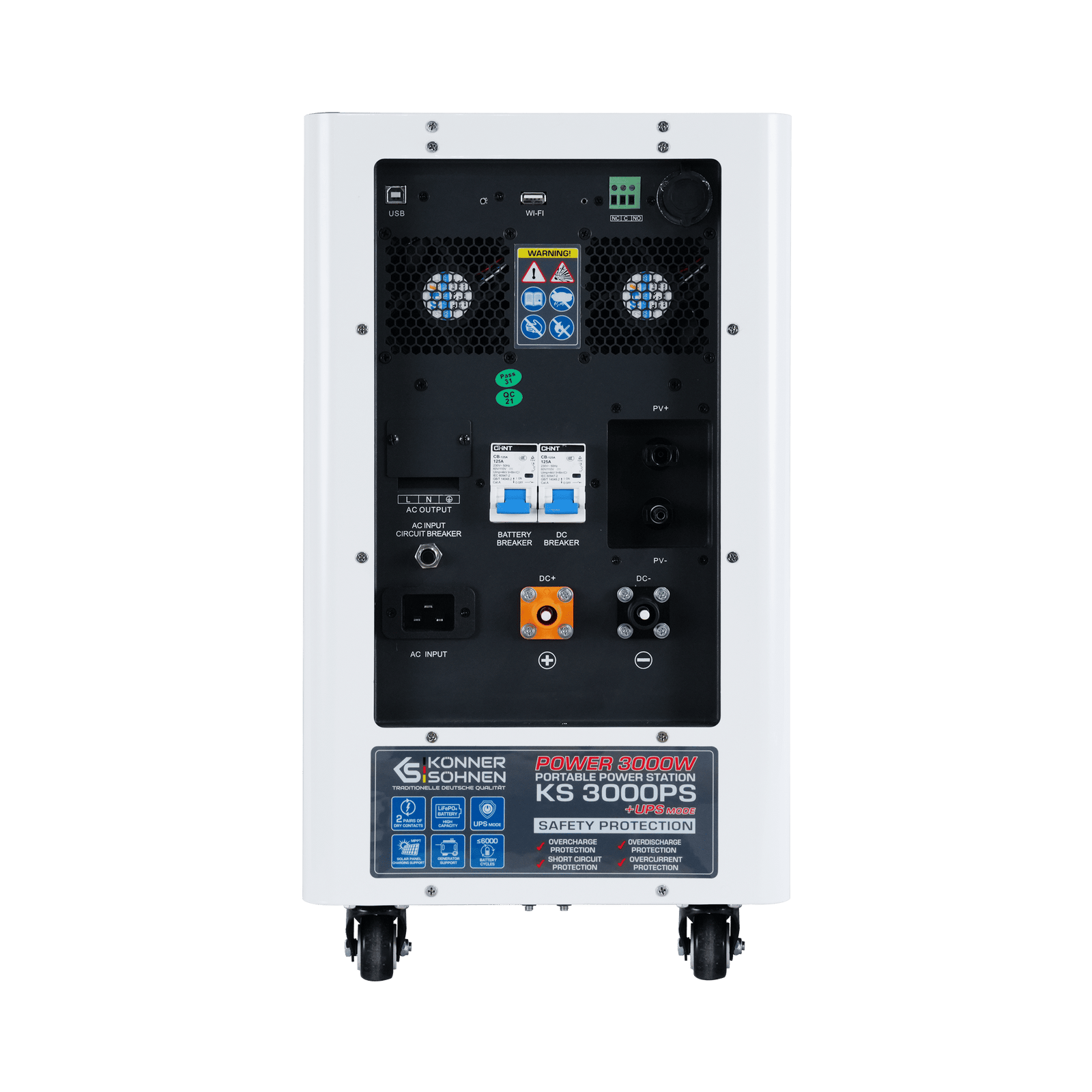

The package includes a USB cable for PC connection via the USB-B port on the rear panel. Installing the software on your computer allows you to monitor key station parameters and adjust settings

Benefícios

Mobility and scalability

the ability to connect a 24V-DC generator, additional batteries, or combine two identical stations (e.g., 2 × KS 3000PS), together with a portable design, creates a flexible hybrid system for various applications — from home to business.

Four power supply options

power from the grid, efficient solar charging up to 80 % in 1 hour, DC generators or additional batteries, and instant switching between them when needed.

Durable and safe LiFePO₄ battery

up to 6000 cycles and a lifespan over 10 years make it a reliable investment in energy independence.

UPS function for uninterrupted operation

automatic power switching < 10 ms protects sensitive devices from failures, data from loss, and businesses from downtime.

Tandem Power compatibility

smart management when working with a KS 24V-DC generator: when battery charge drops, the generator starts automatically, runs efficiently, and stops as soon as charging completes.

High power and reliability

inverter technology with a pure sine wave ensures stable power even for energy-intensive devices, safe for sensitive electronics, guaranteeing operation in critical situations.

Quiet comfort

no constant engine noise, no exhaust fumes, no manual control required.

Especificação

Estação de energia portátil KS 3000PS

Potência nominal, W	3000
AC output waveform	Onda Senoidal Pura
Inverter output voltage	230 V ± 5 %
Frequência, Hz	50 (± 0.2)
Tensão nominal da bateria (CC), V	25.6
Eficiência de conversão	90%
Capacidade da bateria	125 Ah/3200 Wh
Tipo de bateria	LiFePO₄ (bateria de fosfato de ferro-lítio)
Ciclo de vida	≤ 6000* ciclos
Fonte de Alimentação Ininterrupta (UPS)	mais
Maximum discharge current, A	125
Corrente de carregamento PV, máx., A	60
Corrente de Saída das Portas AC, A	120
Maximum MPPT conversion efficiency	up to 98%
Tensão máxima em vazio dos painéis solares (CC), V	160
Faixa de tensão MPPT dos painéis solares, V	30~128
Nominal AC input voltage, V	230
Gama de Tensão de Entrada (AC), V	90-280
Corrente de Carga (AC), A	16
Tempo de Transferência, ms	10 (UPS); 20 (VDE4105, Home, GEN)
Saída AC	4 × Schuko 230 V + rear terminal
Saída DC	2 × 12V DC5521
Saída USB	4 × Type A (5V/2A)
Saída Type-C	1 × Type C (5V/2A)
Temperatura de operação, °C	0 °C a 45 °C Carregamento, -10 °C a 60 °C Descarga
Special features	24V DC output for generator or battery, Pure sine wave inverter, LiFePO₄ 3.2 kWh, MPPT controller, UPS < 10 ms, Tandem Power support, Fast charging up to 80 % in 1 hour, Overload and overheat protection, LCD monitor display, Wheels and handles for mobility
Inclui	Power Station, 230 V Power Cable, USB Cable for PC Connection, 2×Quick Plug Connectors, 2×MC4 Connectors, User Manual
Dimensões líquidas (CxLxA), mm	445×280×510
Dimensões brutas (CxLxA), mm	555×380×565
Peso líquido, kg	37
Peso bruto, kg	43.0
SKU	KS 3000PS
Código de barras	4260405366880
