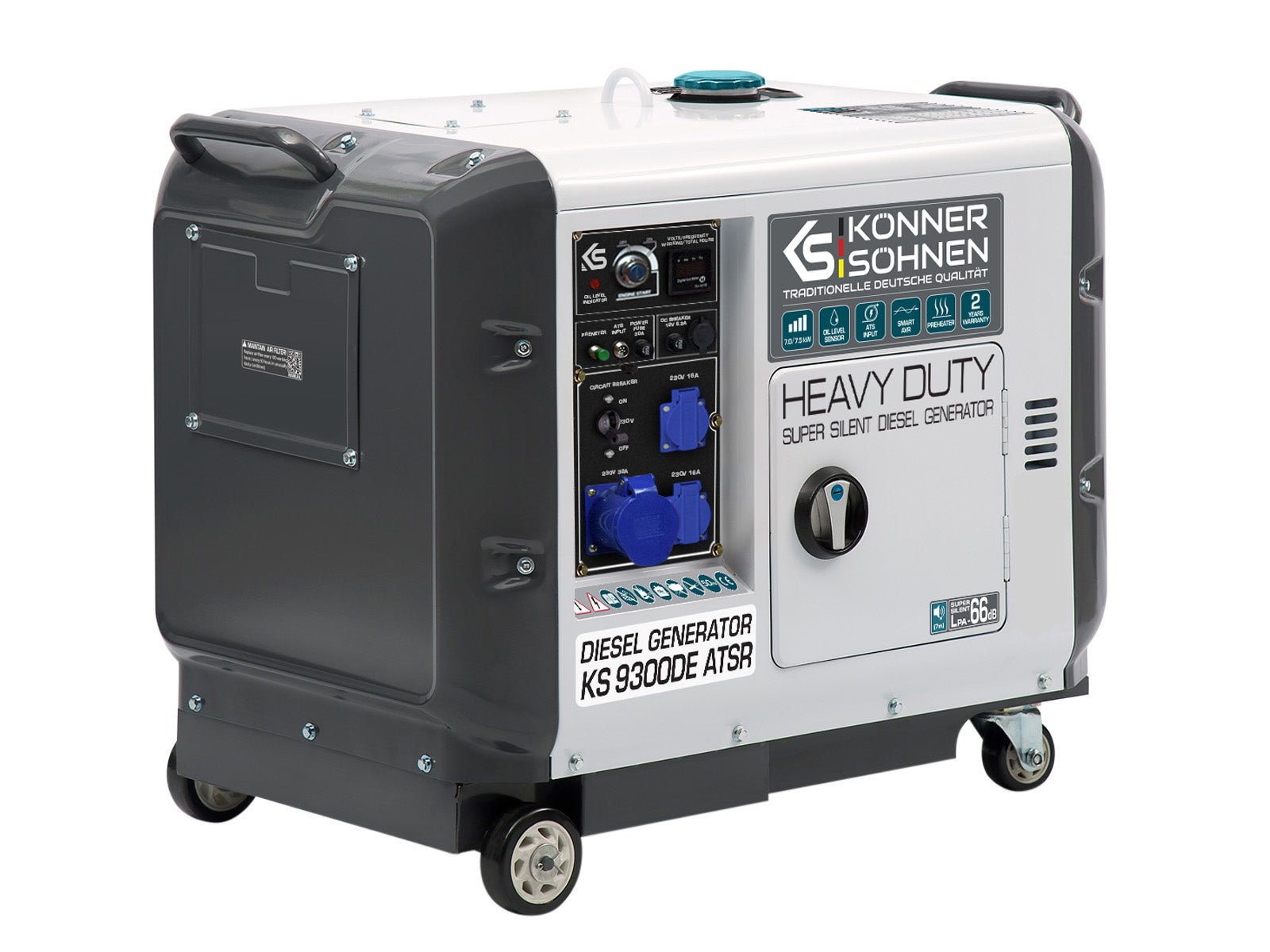

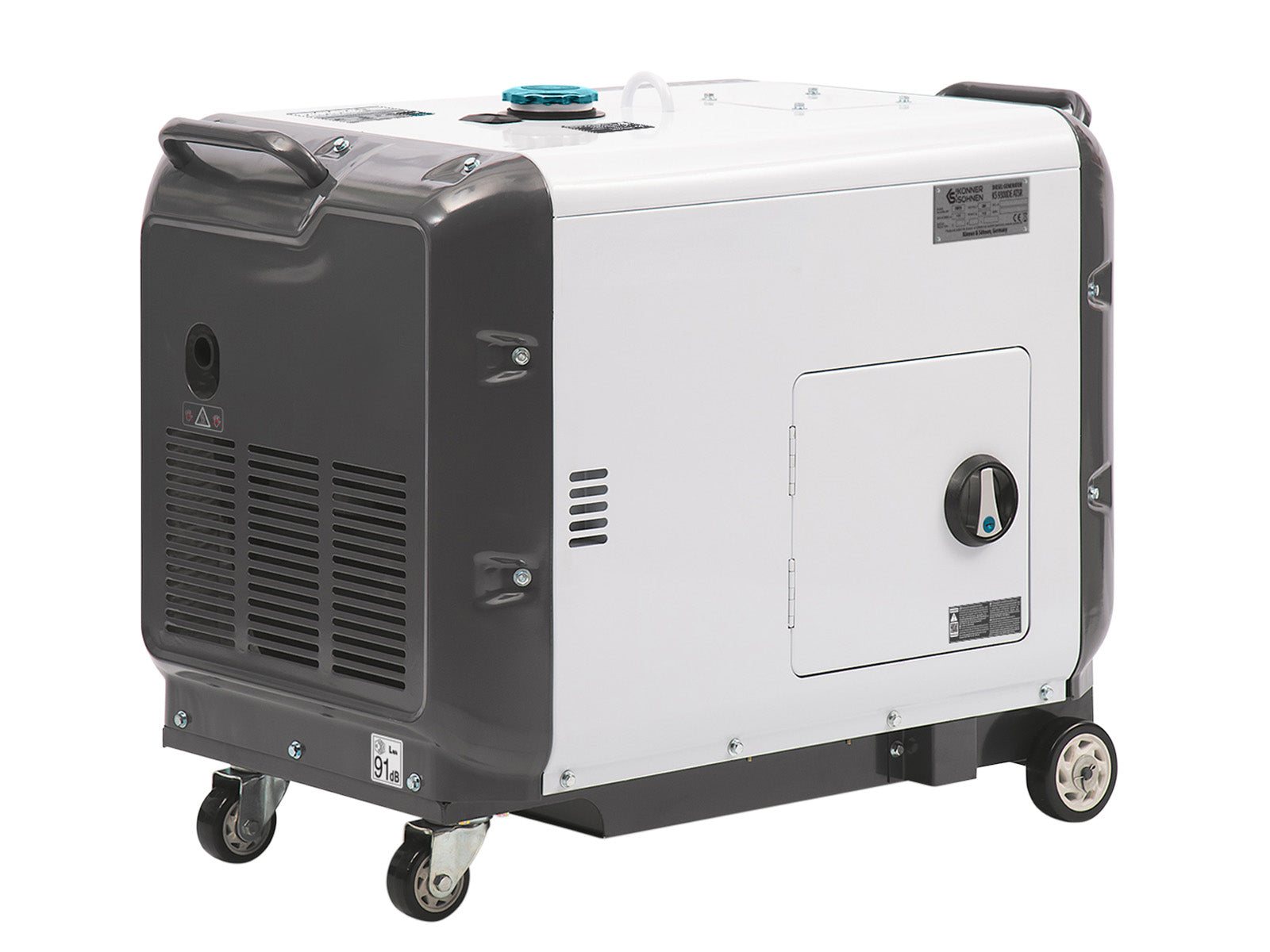

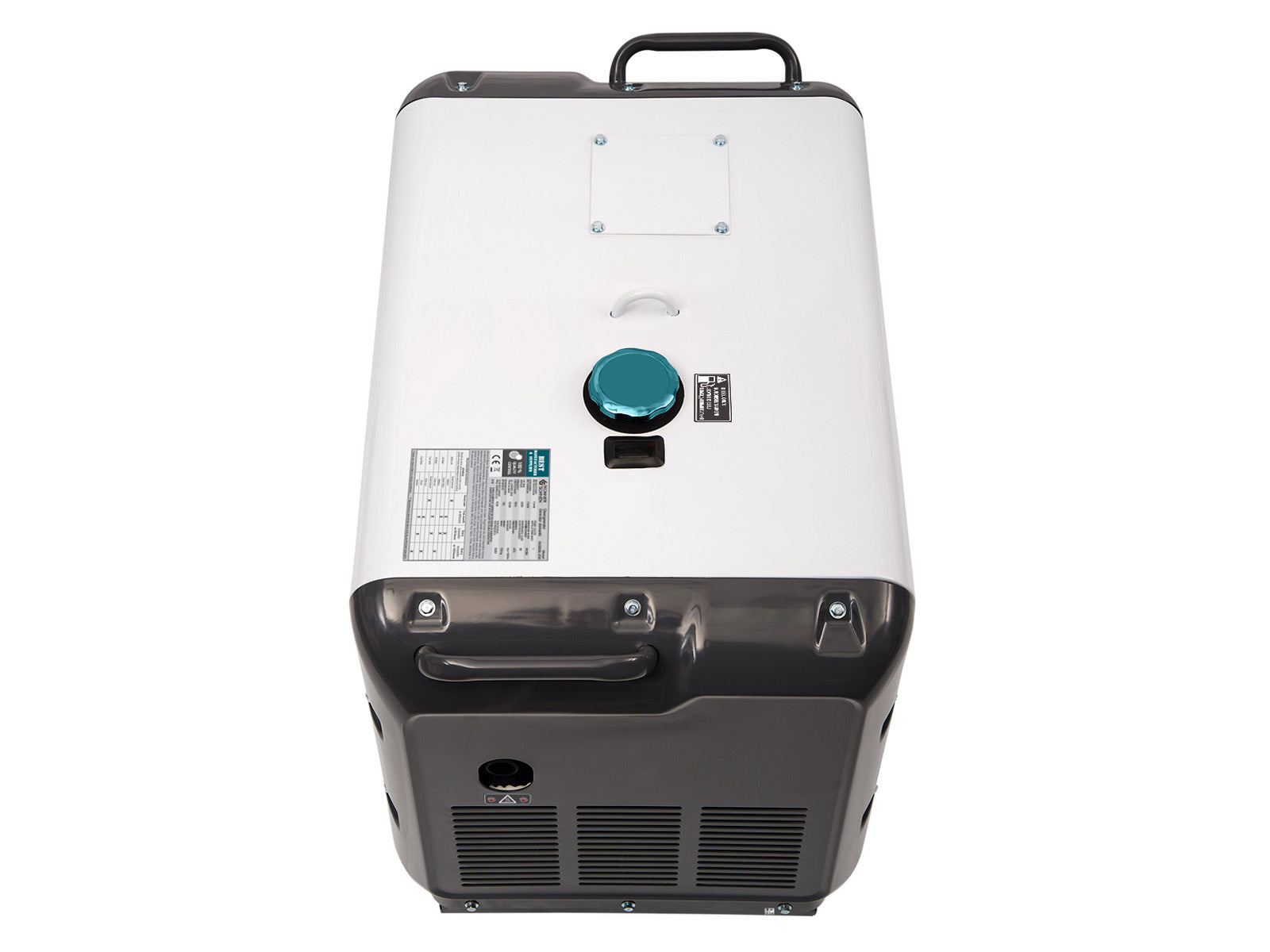

Name: KS 9300DE ATSR (EURO V) (Refurbished Excellent)
Brand: Könner & Söhnen
Price: 29821.0 SEK
Availability: InStock

Features

01 Automatic transfer switch

02 Transport kit

03 The user-friendly ergonomic control panel

04 Soundproof anti-vandal enclosure

05 Branded engines

Automatic transfer switch

6-pin connector for an external ATS unit ensures automatic generator start-up and shutdown and maintains the charge of the generator battery in standby mode.

Transport kit

The generator casing is equipped with a transport kit consisting of 4 wheels and 2 handles for easy handling.

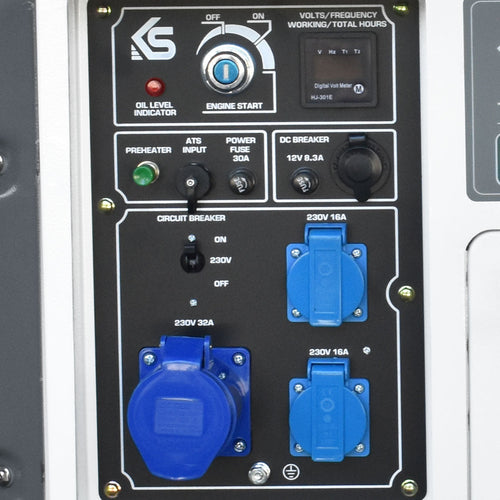

The user-friendly ergonomic control panel

Ergonomic control panel allows easy operation of the generator thanks to the convenient location of the controls and connections: modern LED display (voltage, frequency, hour meter), automatic overload and short circuit protection, low oil level indicator, sockets, grounding bolt, terminals, etc.

Soundproof anti-vandal enclosure

Anti-vandal enclosure provides a more efficient heat distribution inside the generator, which extends its service life.

Branded engines

Engines for diesel generators, as well as for gasoline, are manufactured under license DIMAX Int. GmbH and are marked with their own brand with the logo. In all models, the power reserve of the engine in relation to the alternator allows you to issue the declared voltage and maintain its stability in the full range of voltages. All engines are tested for long continuous operation, and then disassembled and examined for faults. Each engine and each generator has an individual serial number, which allows us to control the quality of production and service. The engines meet all European quality standards, including the modern EURO-V environmental standard.

Specification

KS 9300DE ATSR (EURO V) (Refurbished Excellent)

Voltage, V	230
Power factor, cosφ	1
Frequency, Hz	50**
Outlets	1 x CEE 230 V 32 A, 2 x Schuko 230 V
Avg. working time (power 50%), h***	8.3
LED display	Voltage, frequency, working hours
Noise level Lpa (7m)/Lwa, dB	66/91
Power output DC, V/А	12/8.3
Engine model	KS 520HD-V
Engine power, hp/kW	18.0/13.24
Preheater	+
Fuel tank volume, l	15
Crank case volume, l	1.65
Engine cylinder volume, cm3	498
Power output controller	Intelligent voltage stabilization system AVR
Engine start	Electric
Output for ATS	+
Protection class	IP23M
Net dimensions (LxWxH), mm	920 x 580 x 860
Gross dimensions (LxWxH), mm	940 х 600 х 880
Net weight, kg	165
Gross weight, kg	175.0
SKU	KS 9300DE ATSR Excellent
