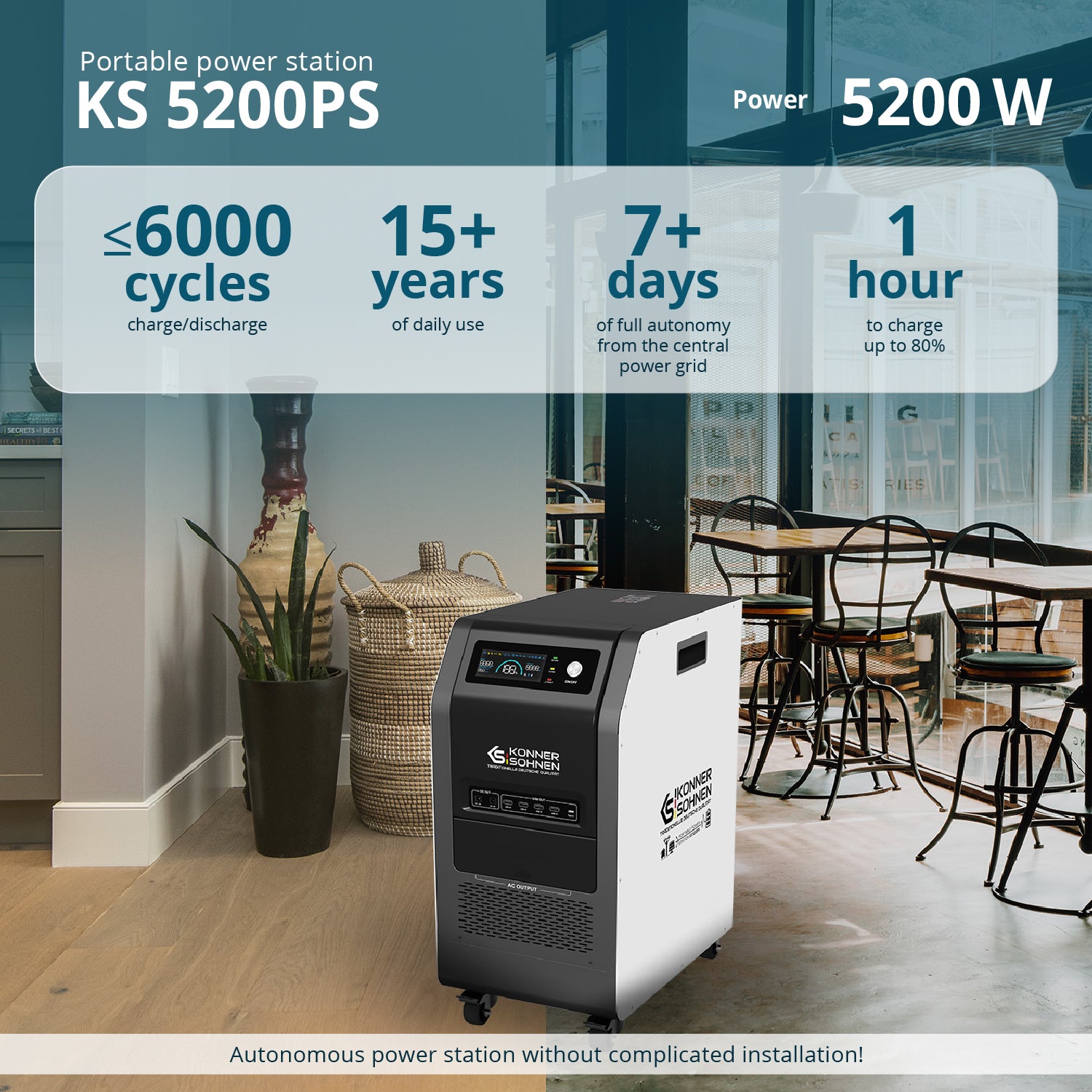

Portable power station KS 5200PS

Name: Portable power station KS 5200PS
Brand: Könner & Söhnen
SKU: 4260405368006
Price: 23028.0 SEK
Availability: InStock

Available

23 028 kr

26 906 kr

Specification

Rated power, W:	5200
Capacity, Wh:	5120
Battery type:	LiFePO₄ (lithium iron phosphate battery)
Lifecycle:	≤ 6000* cycles
Uninterruptible Power Supply (UPS):	+

Specification

Rated power, W	5200
The shape of the output	Pure Sine Wave
Battery capacity	100 Ah/5120 Wh
Battery type	LiFePO₄ (lithium iron phosphate battery)
Lifecycle	≤ 6000* cycles
Nominal battery voltage (DC), V	51.2
Efficiency	90%
PV charging current, max, A	100
Efficiency of the MPP converter	98% max
Maximum Charging Power PV Input, kW	5
Maximum idle voltage from solar panels (DC), V	450
MPPT voltage range from solar panels, V	150~430
Nominal input voltage	230 ± 5%
Input Voltage Range (AC), V	90-280
Maximum Charging Power AC Input, kW	4.4
Frequency, Hz	50/60
Transfer Time, ms	10 (UPS, VDE); 20 (APL)
Charge Current (AC), A	25
AC output	4 × Schuko 230 V
DC output	2 × DC 12V
USB output	4 × Type A (5V)
Type-C output	1 × Type C (5V)
Uninterruptible Power Supply (UPS)	+
Current Output from AC Ports, A	23
Operation temperature, °C	0 °C to 45 °C Charge, -10 °C to 60°C Discharge
Net dimensions (LxWxH), mm	485×280×630
Gross dimensions (LxWxH), mm	599×404×682
Net weight, kg	58
Gross weight, kg	72.0
SKU	KS 5200PS
Barcode	4260405368006

Delivery

Free shipping: receive your order in just 1-5 business days.

Payment

We offer a wide range of secure and convenient payment methods, including:

Features

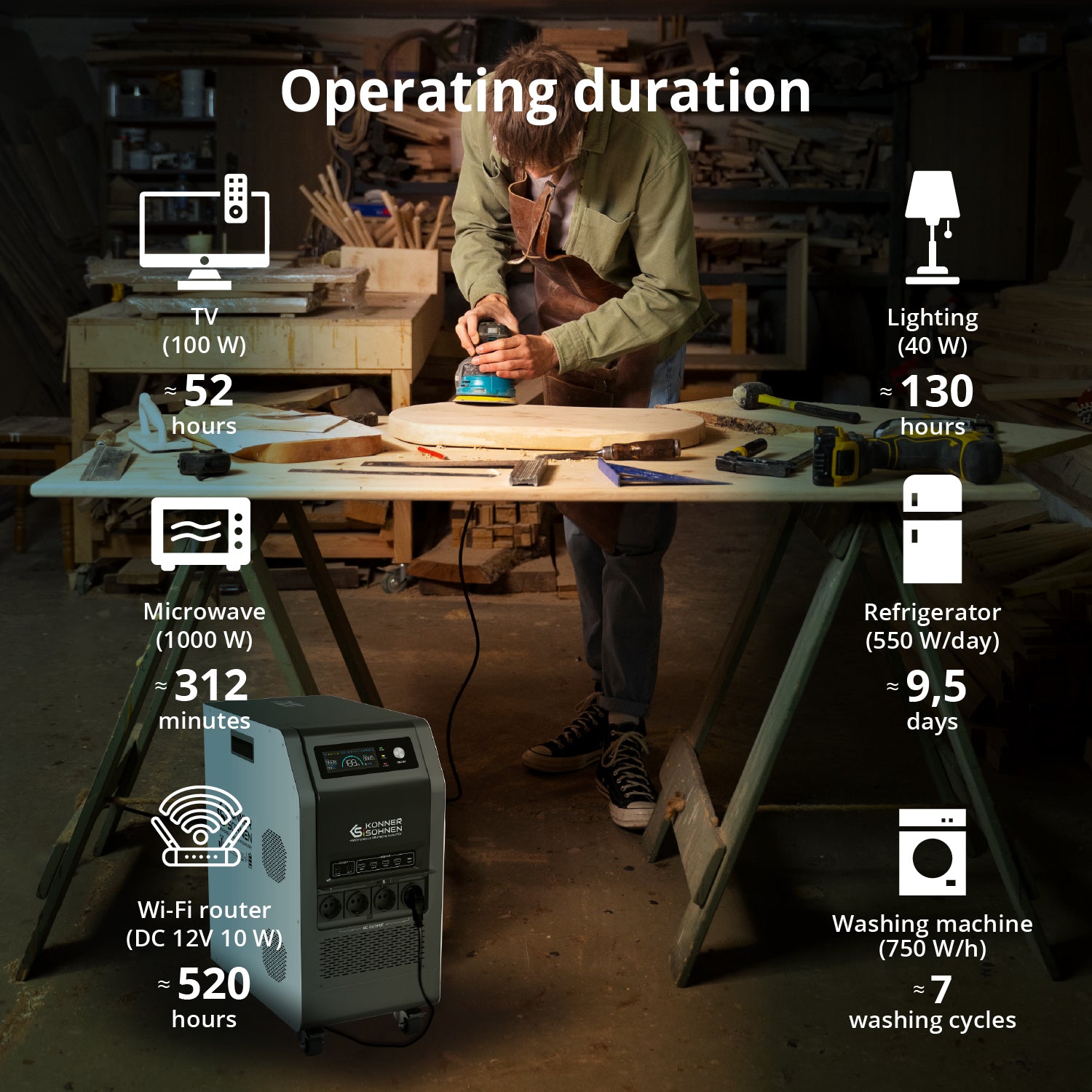

The high-performance KS 5200PS power station from Könner & Söhnen® combines high power and mobility. It is equipped with a high-capacity LiFePO4 lithium iron phosphate battery, a pure sine wave inverter, and offers fast solar charging – up to 5 kW! With its technical specifications, the station provides extended power, even during prolonged outages. Depending on your usage scenario, the station's capacity is sufficient to power a small office (10 computers, printer, router) for 5-7 hours, an apartment for up to 24 hours, and, thanks to rapid charging, you can quickly replenish the battery for further use.

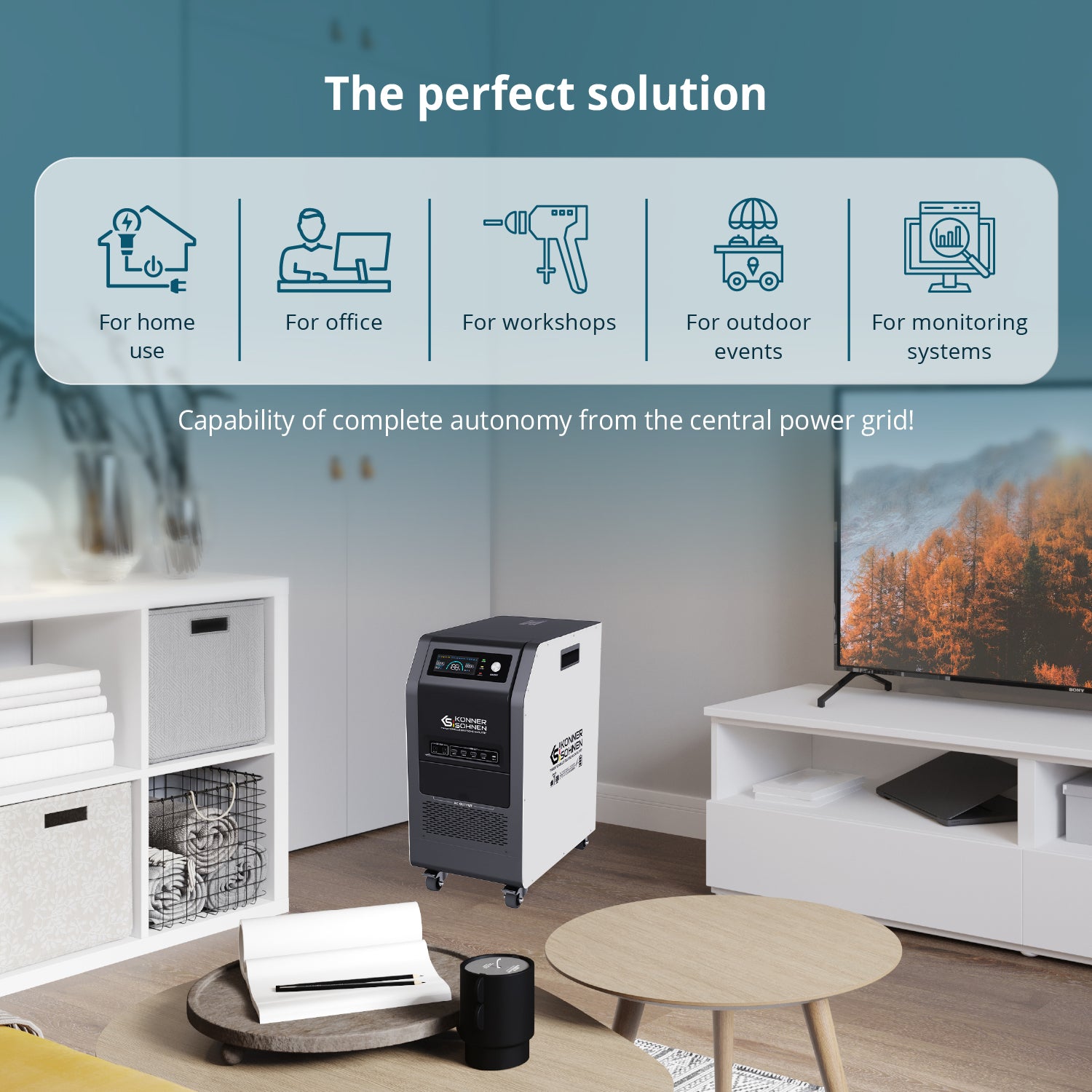

Easy to use, the station requires no special permits or complicated procedures. It is ready for operation right out of the box and serves as a backup power source for essential devices, powers electric tools in locations without a permanent power grid, and provides electricity during planned power outages.

01 HIGH-PERFORMANCE 3-IN-1 STATION

02 MPPT SOLAR CHARGE CONTROLLER

03 UNINTERRUPTIBLE POWER SUPPLY (UPS)

04 EFFICIENT ENERGY MANAGEMENT

05 OVER 10 YEARS OF CAREFREE USE

06 PURE SINE WAVE

07 MAXIMUM EFFICIENCY AND GENERATOR COMPATIBILITY

08 ECO-FRIENDLY, NOISE-FREE ENERGY SOURCE

09 VERY EASY TO OPERATE

10 LCD DISPLAY

11 MULTIPORT

12 PC CONNECTION

HIGH-PERFORMANCE 3-IN-1 STATION

This fully autonomous power station combines a powerful inverter, an MPPT controller, and a high-capacity battery for energy storage. Thanks to the large battery capacity and powerful inverter, you can use multiple devices during extended periods.

MPPT SOLAR CHARGE CONTROLLER

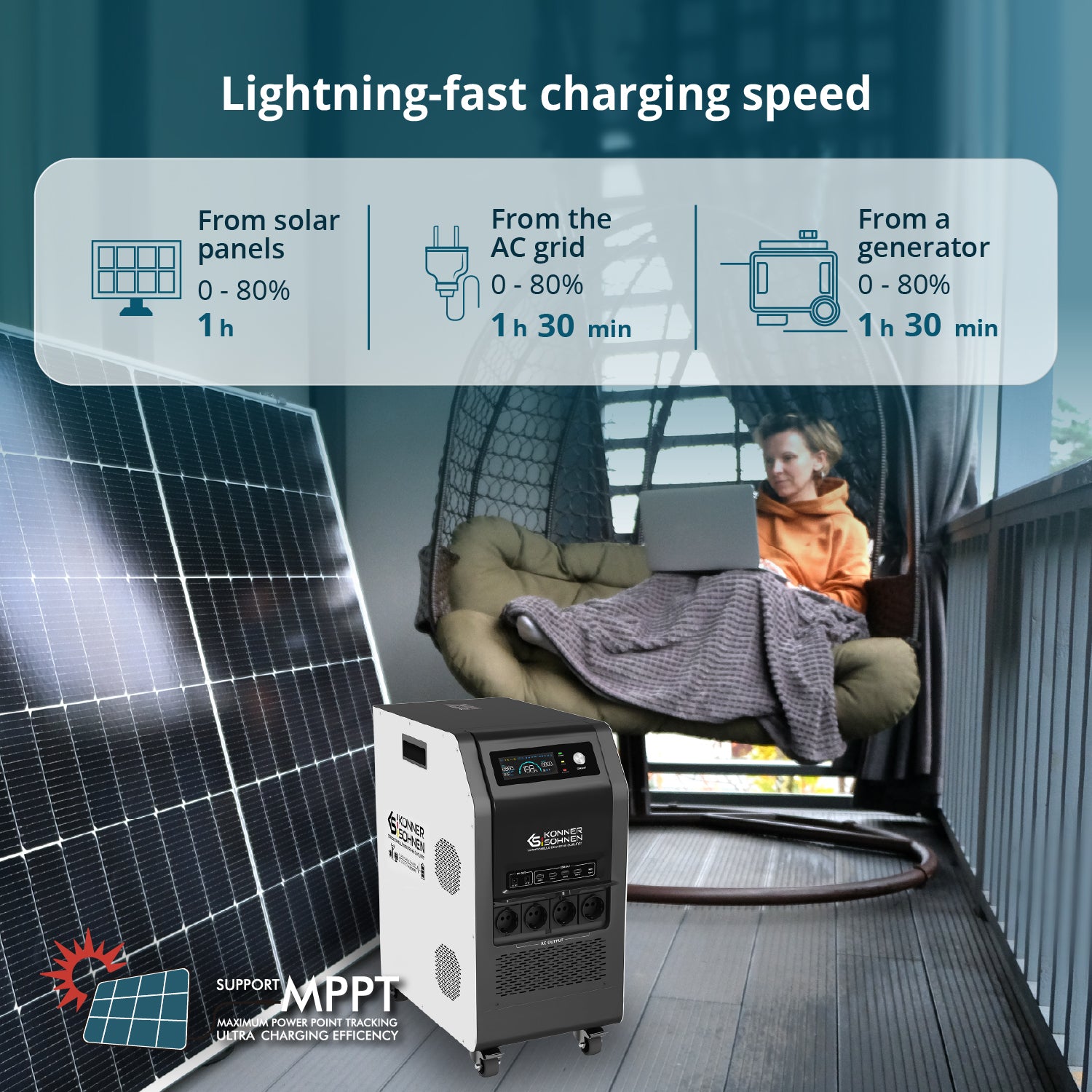

High-efficiency charging from solar panels is one of the key advantages of our stations. With a sufficient number of solar panels, the KS 5200PS station can recharge up to 80% in just 1 hour.

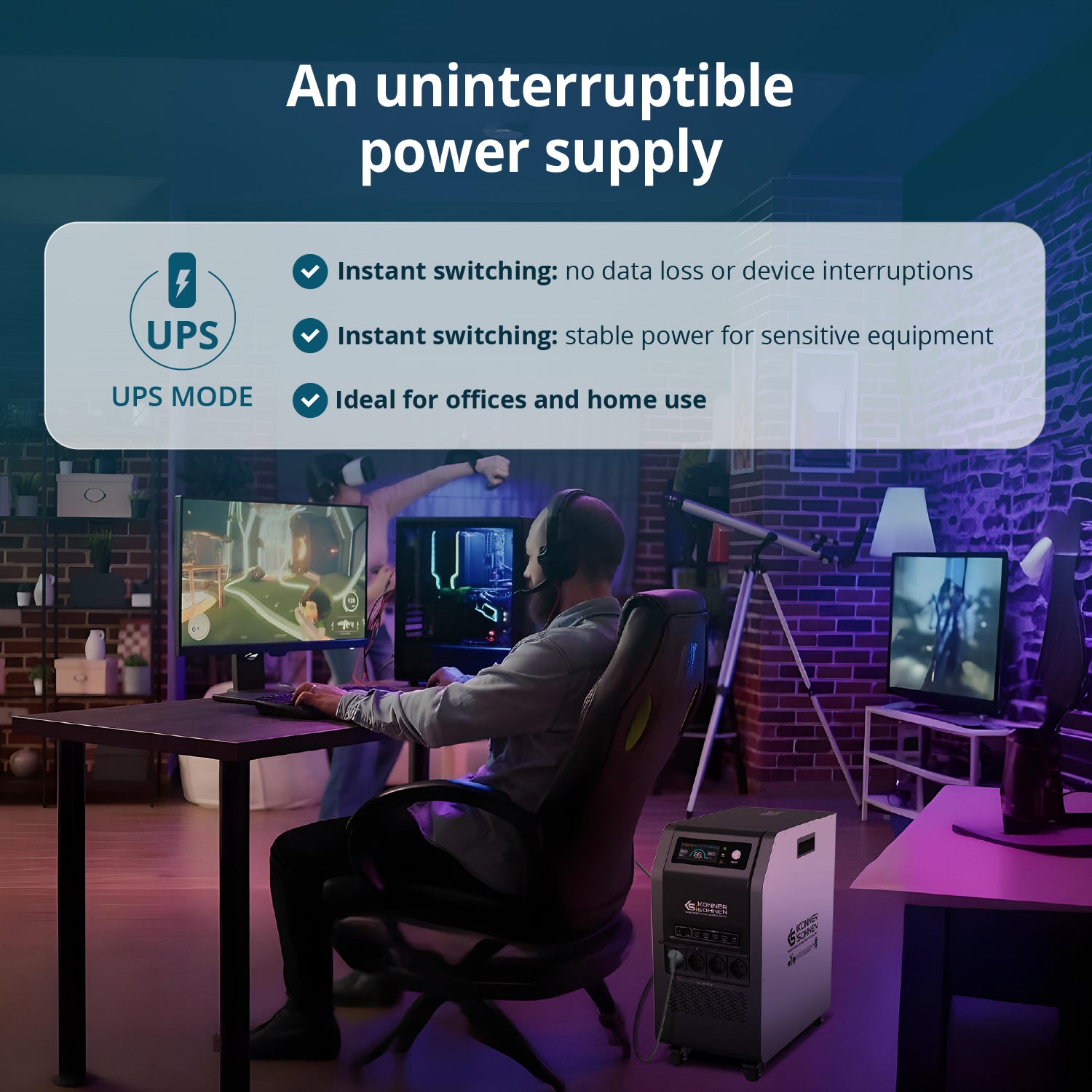

UNINTERRUPTIBLE POWER SUPPLY (UPS)

The power station provides a continuous electrical energy supply to connected equipment, even during power outages or voltage fluctuations in the grid. Within milliseconds, the station transfers power to your devices. This uninterrupted operation prevents data loss, equipment damage, and work process interruptions.

EFFICIENT ENERGY MANAGEMENT

With this power station, you can store electricity at night during off-peak rates and use it as needed during the day. The KS 5200PS can recharge up to 80% from the AC source in just 1.5 hours.

OVER 10 YEARS OF CAREFREE USE

The power station is equipped with lithium iron phosphate (LiFePO4) batteries, withstanding over 6000* charge-discharge cycles, ensuring stable operation for many years.

PURE SINE WAVE

The powerful built-in inverter generates a "pure sine wave," enabling any devices, even the most sensitive ones, to be connected, providing them with safe and stable power.

MAXIMUM EFFICIENCY AND GENERATOR COMPATIBILITY

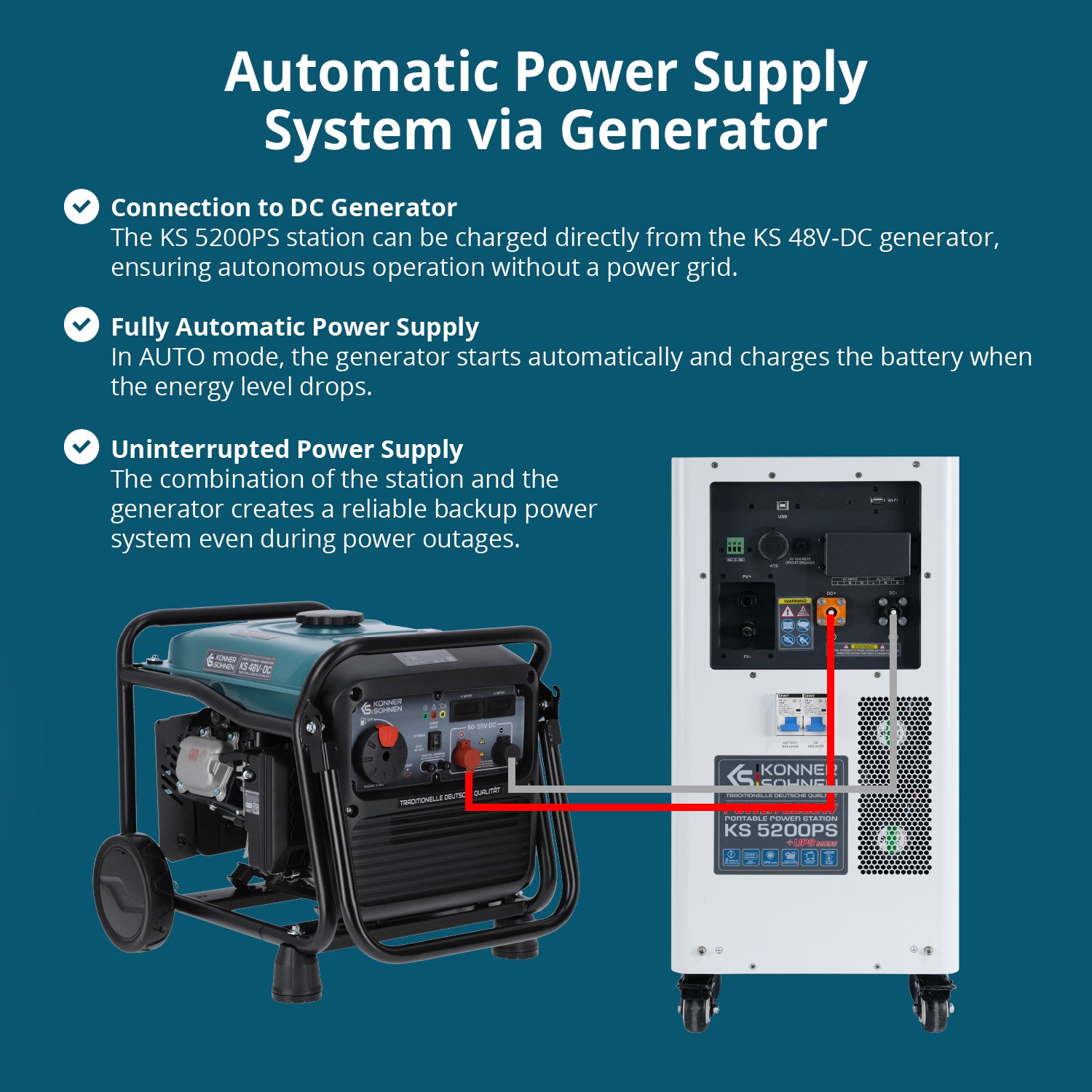

The station features "dry" contacts to control external devices (such as a generator or external power switch) based on the station's battery voltage. Thanks to the integrated charging module from an external AC source with Power Factor Correction (PFC), there are no reactive power losses, significantly enhancing compatibility with generators. The station maximally utilizes the energy supplied by the generator.

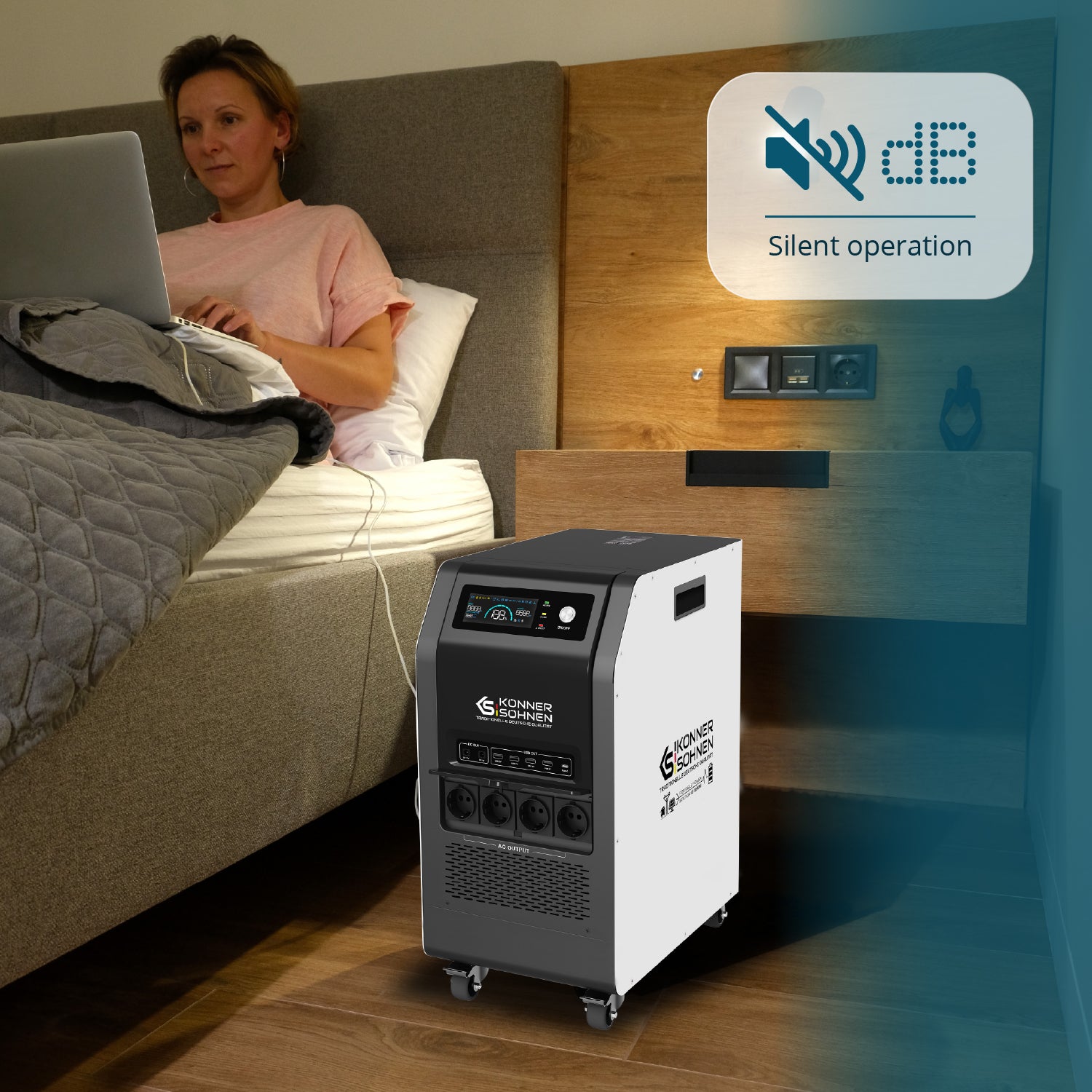

ECO-FRIENDLY, NOISE-FREE ENERGY SOURCE

It does not pollute the environment with harmful emissions and has no impact on the regional climate. It can be used anywhere without disturbing others, making it the perfect choice for those who value peace and nature.

VERY EASY TO OPERATE

Low-maintenance: no need for constant refueling, oiling, or filter replacement. Equipped with wheels and handles for easy transport.

LCD DISPLAY

The control panel is equipped with an LCD display that shows key operational indicators, battery charge percentage, remaining usage time at the current load, charging time based on the current state of charge, as well as input and output power, output frequency (50/60 Hz), and warnings.

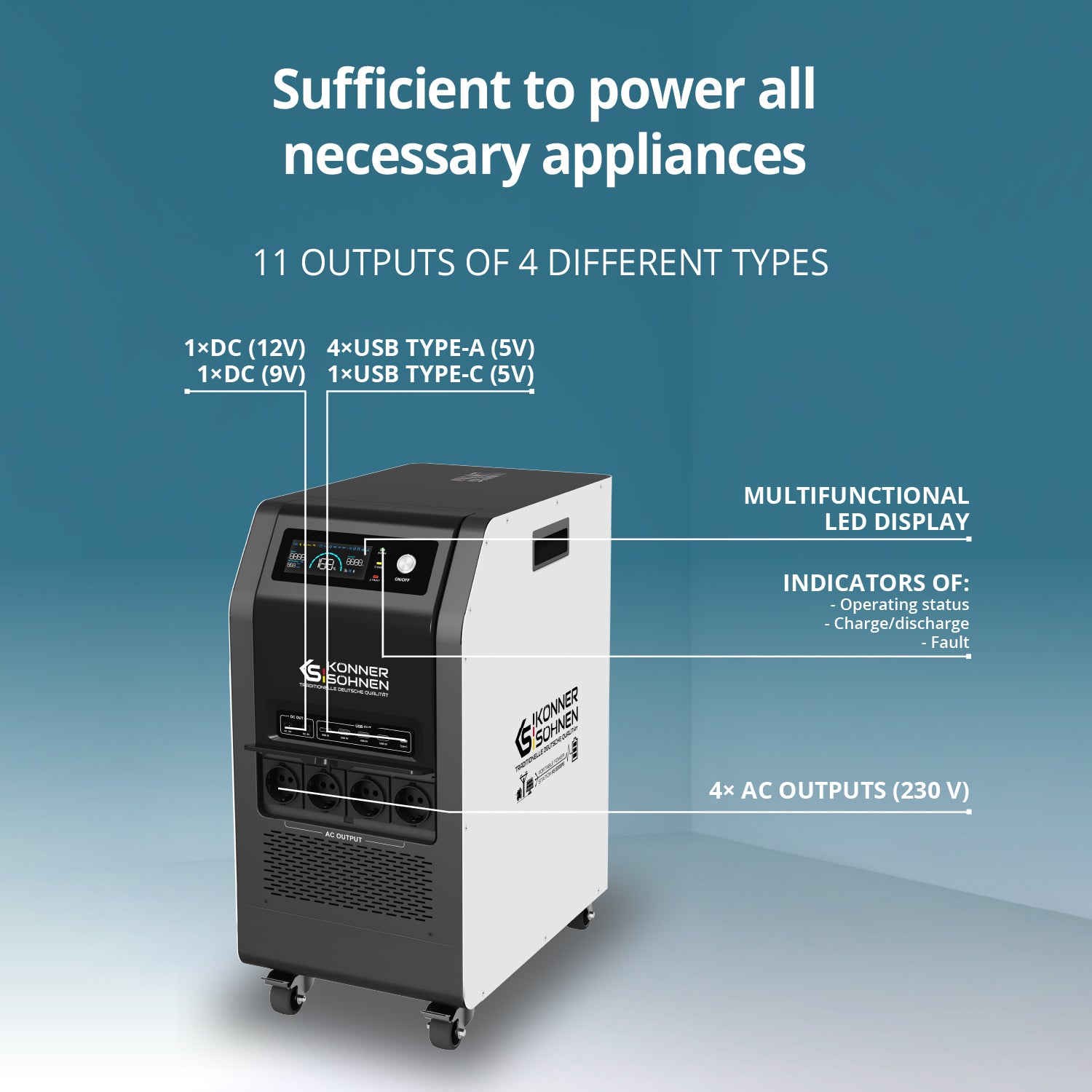

MULTIPORT

Equipped with 11 different ports (2 DC ports, 4 AC ports, 4 USB Type-A ports, 1 USB Type-C port) to simultaneously connect and charge a variety of devices.

PC CONNECTION

A USB cable is included for connecting to a computer via a USB-A communication port. Once software is installed on the computer, you can monitor the key station parameters.

Specification

Portable power station KS 5200PS

Rated power, W	5200
The shape of the output	Pure Sine Wave
Battery capacity	100 Ah/5120 Wh
Battery type	LiFePO₄ (lithium iron phosphate battery)
Lifecycle	≤ 6000* cycles
Nominal battery voltage (DC), V	51.2
Efficiency	90%
PV charging current, max, A	100
Efficiency of the MPP converter	98% max
Maximum Charging Power PV Input, kW	5
Maximum idle voltage from solar panels (DC), V	450
MPPT voltage range from solar panels, V	150~430
Nominal input voltage	230 ± 5%
Input Voltage Range (AC), V	90-280
Maximum Charging Power AC Input, kW	4.4
Frequency, Hz	50/60
Transfer Time, ms	10 (UPS, VDE); 20 (APL)
Charge Current (AC), A	25
AC output	4 × Schuko 230 V
DC output	2 × DC 12V
USB output	4 × Type A (5V)
Type-C output	1 × Type C (5V)
Uninterruptible Power Supply (UPS)	+
Current Output from AC Ports, A	23
Operation temperature, °C	0 °C to 45 °C Charge, -10 °C to 60°C Discharge

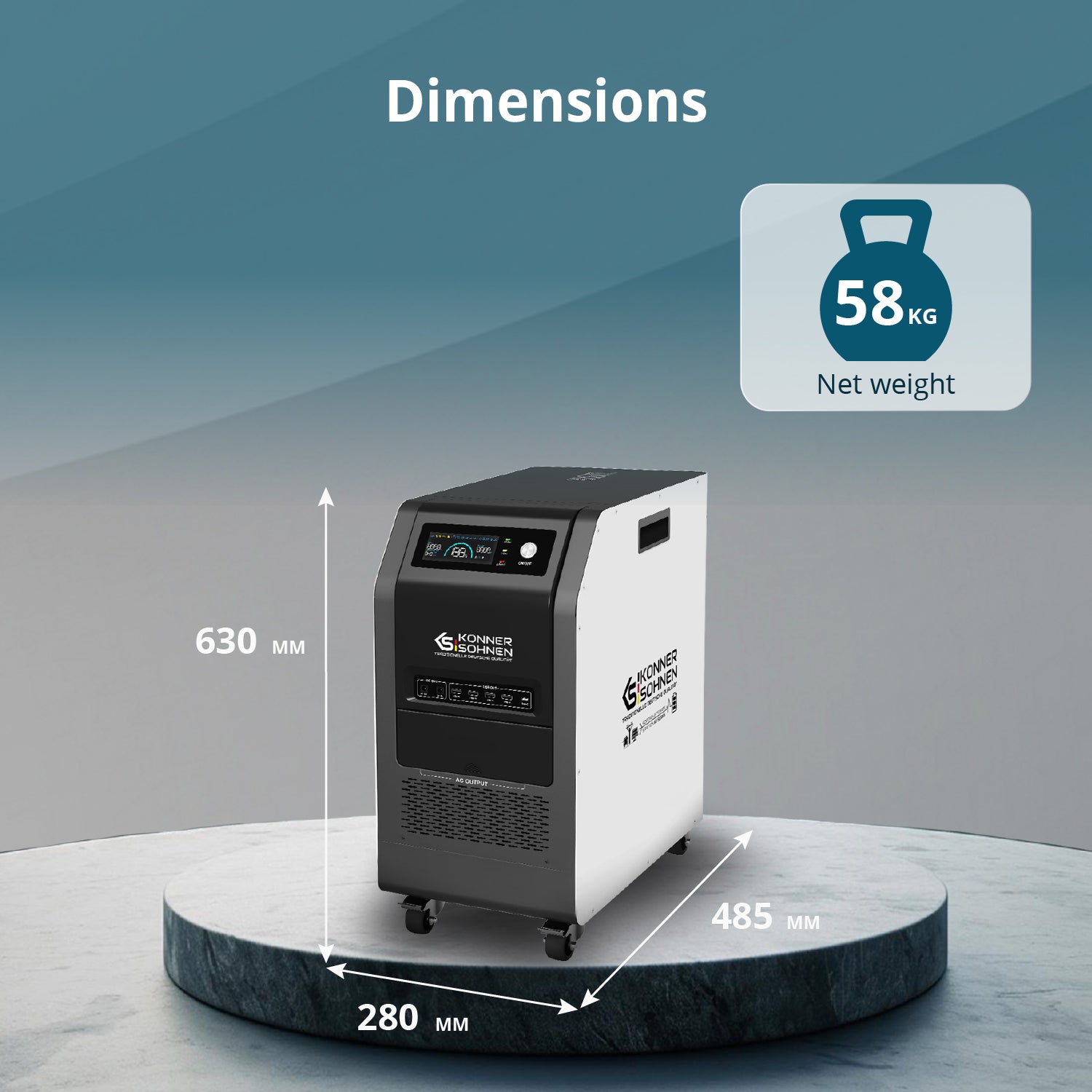

Net dimensions (LxWxH), mm	485×280×630
Gross dimensions (LxWxH), mm	599×404×682
Net weight, kg	58
Gross weight, kg	72.0
SKU	KS 5200PS
Barcode	4260405368006

*≤6000 cycles at a charge current of 0.2 C and discharge current of 0.5 C at 80% DOD.

*≤4000 cycles at a charge current of 0.5 C and discharge current of 0.5 C at 80% DOD.
